DO macht aus weniger mehr – dank einer völlig neuen Herangehensweise bei der Entwicklung dieses Bürodrehstuhls. DO ist innovativ hinsichtlich der verwendeten Materialien, der Montage- und Transportmethoden und seiner aussergewöhnlichen Leistungsfähigkeit.
Menschen sind ganz unterschiedlich gebaut. Da gemeinsam genutzte Arbeitsplätze immer häufiger werden, gewinnen einfache, anpassungsfähige Stühle zunehmend an Bedeutung. Dank des nutzerorientierten Designs und eines Mechanismus für den Gewichtsausgleich sind bei DO nicht mehr eine Vielzahl von Knöpfen und Hebeln zu finden und zu verstehen. Wir haben die Einstellungsmöglichkeiten vergrössert und gleichzeitig die Art und Weise der Einstellung vereinfacht. So lässt sich DO ganz intuitiv einstellen und nutzen.
Thanks to user-centred design and a weight balancing mechanism, Do doesn’t have a multitude of knobs and levers to find and struggle with. In fact, we’ve increased the range of adjustment on offer, while at the same time simplifying how it’s delivered, making Do easier to set up and more intuitive to use.

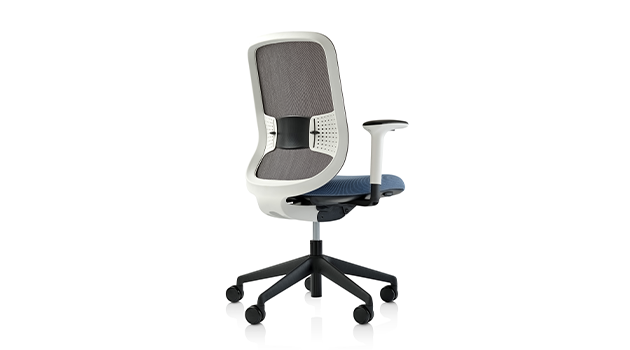

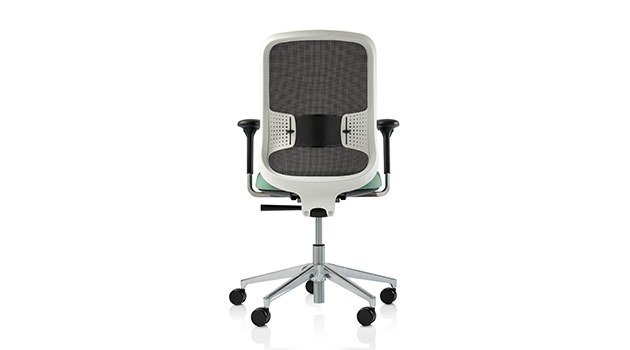

DO-HBA

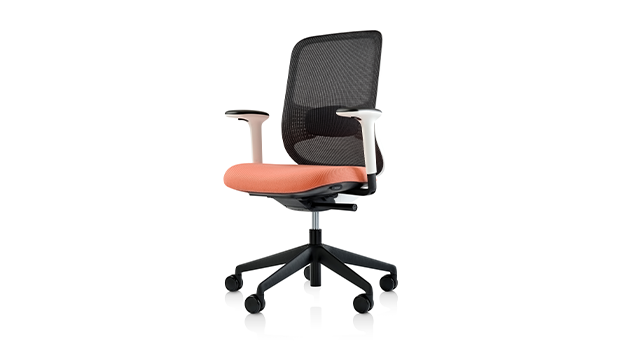

DO-HBA

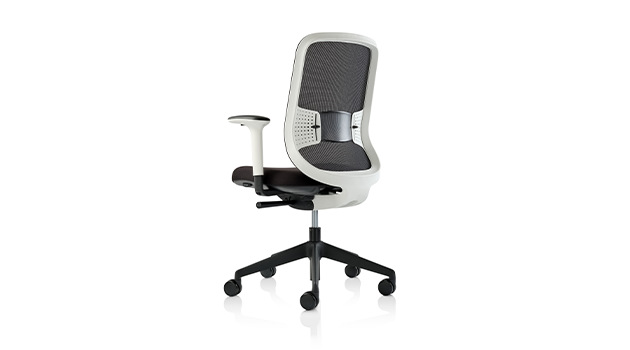

DO-HBA
DO-HBA

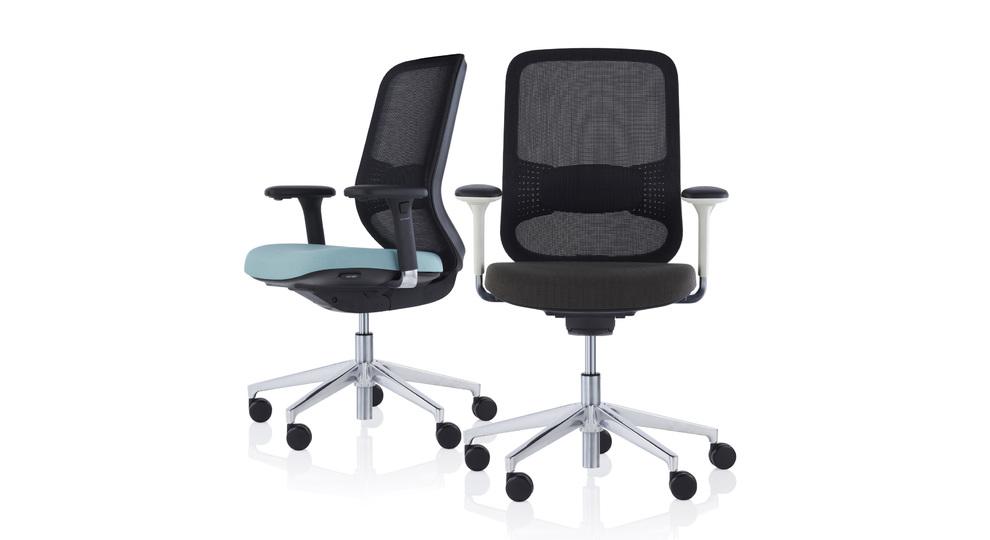

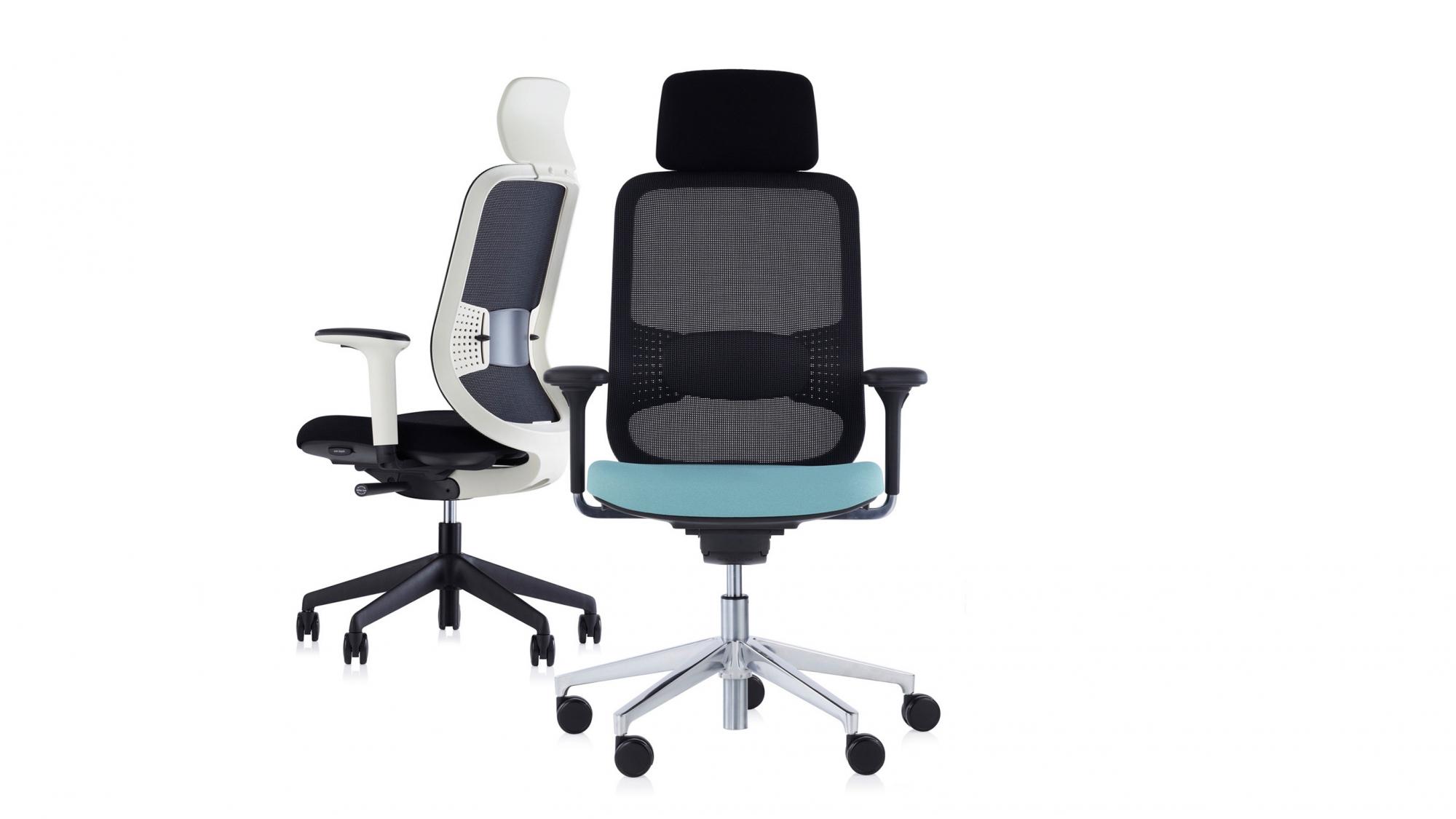

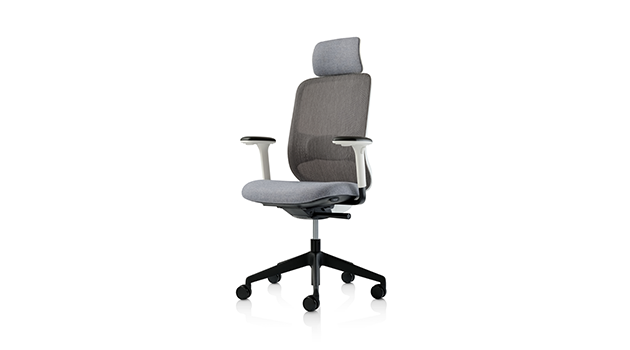

DO-HBHA
1/1

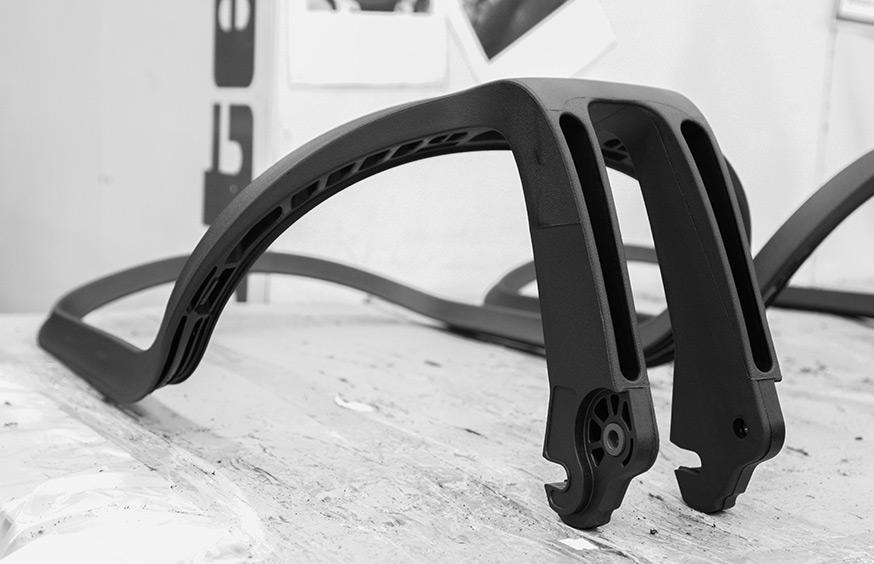

Designing Do
“To achieve both the quality and quantity of production for this high volume task chair, the design and development project extended into manufacturing. We created new production lines to ensure that Do’s highly refined mesh back would be perfect on every single chair.”
Orangebox Engineering Team

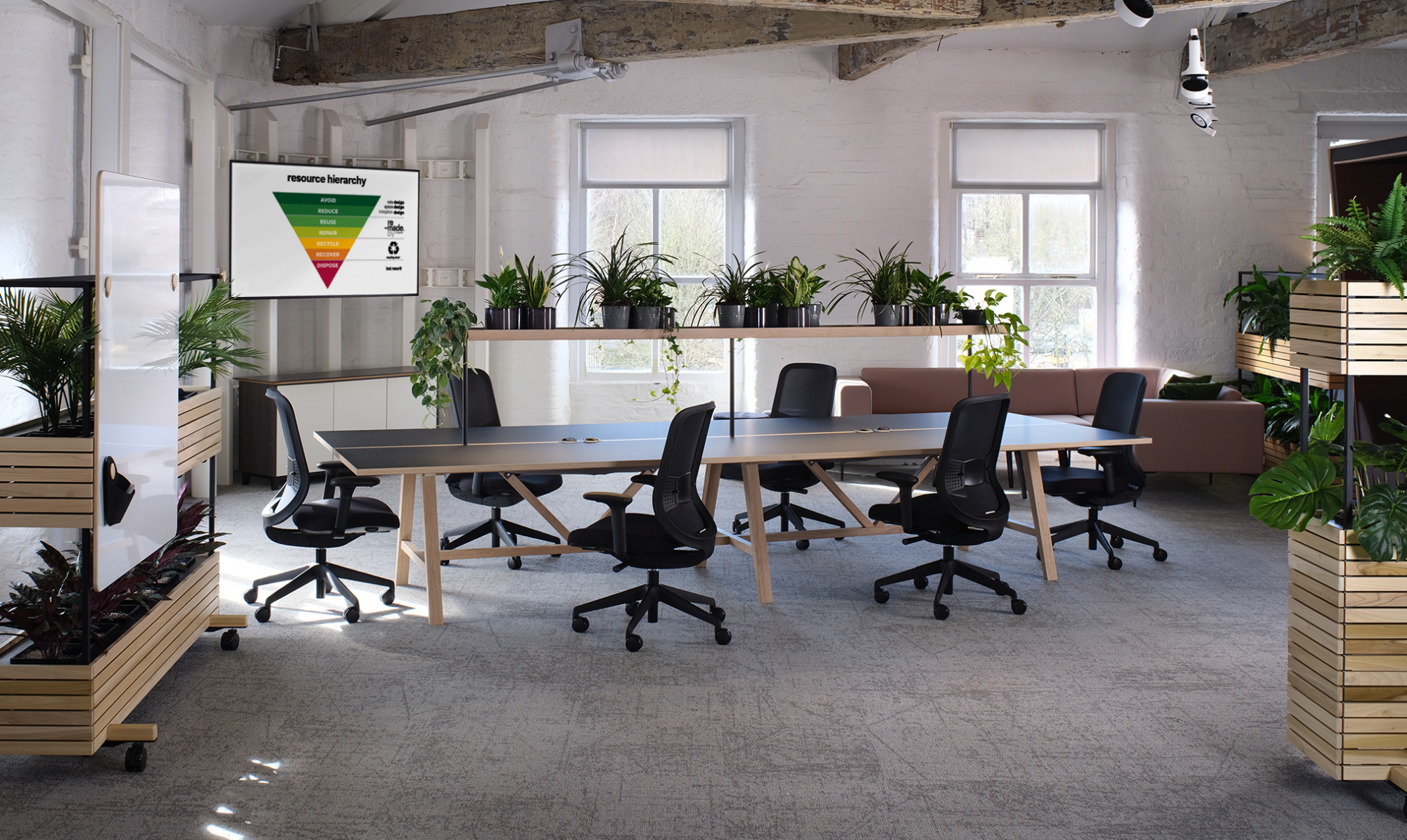

DO-HBA

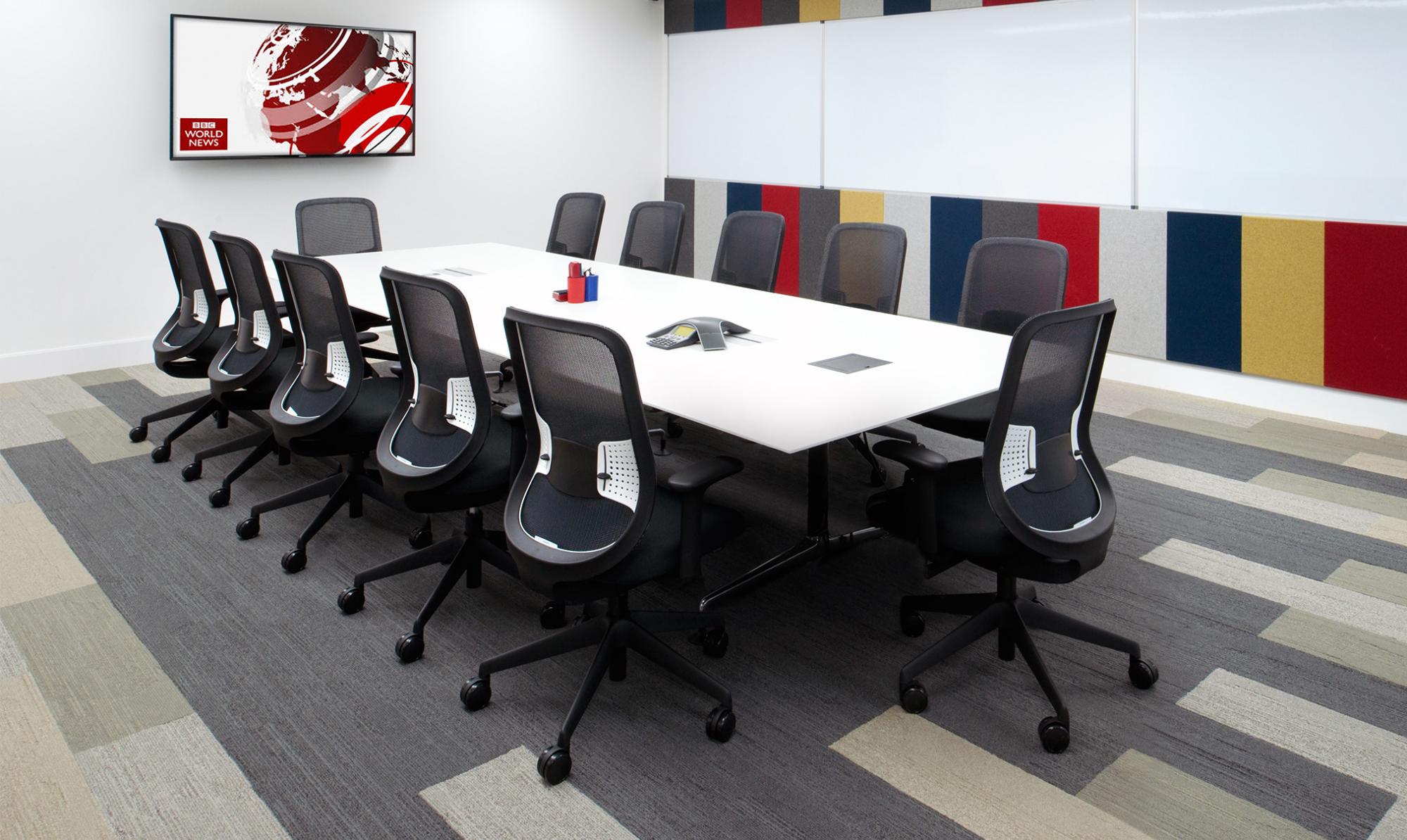

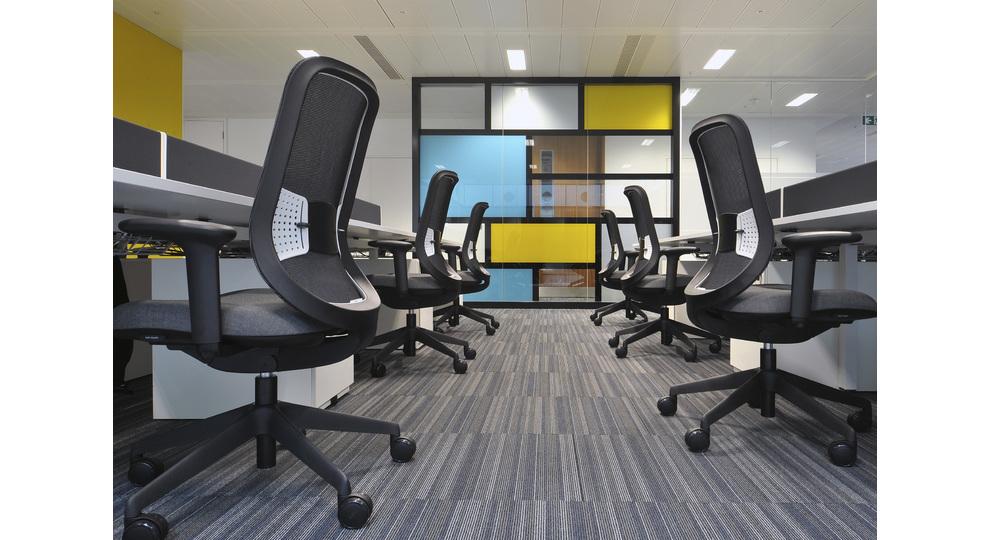

Capital One — DO-HBA
Interserve Pargon — DO-HBA

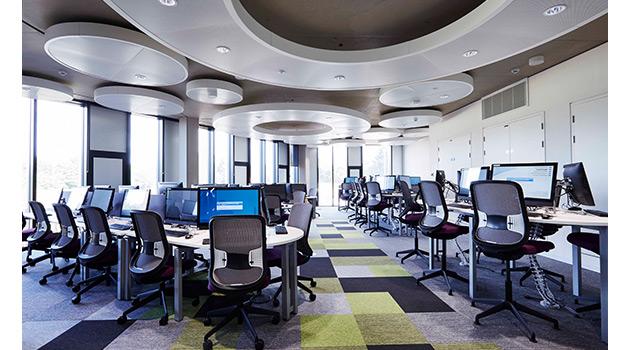

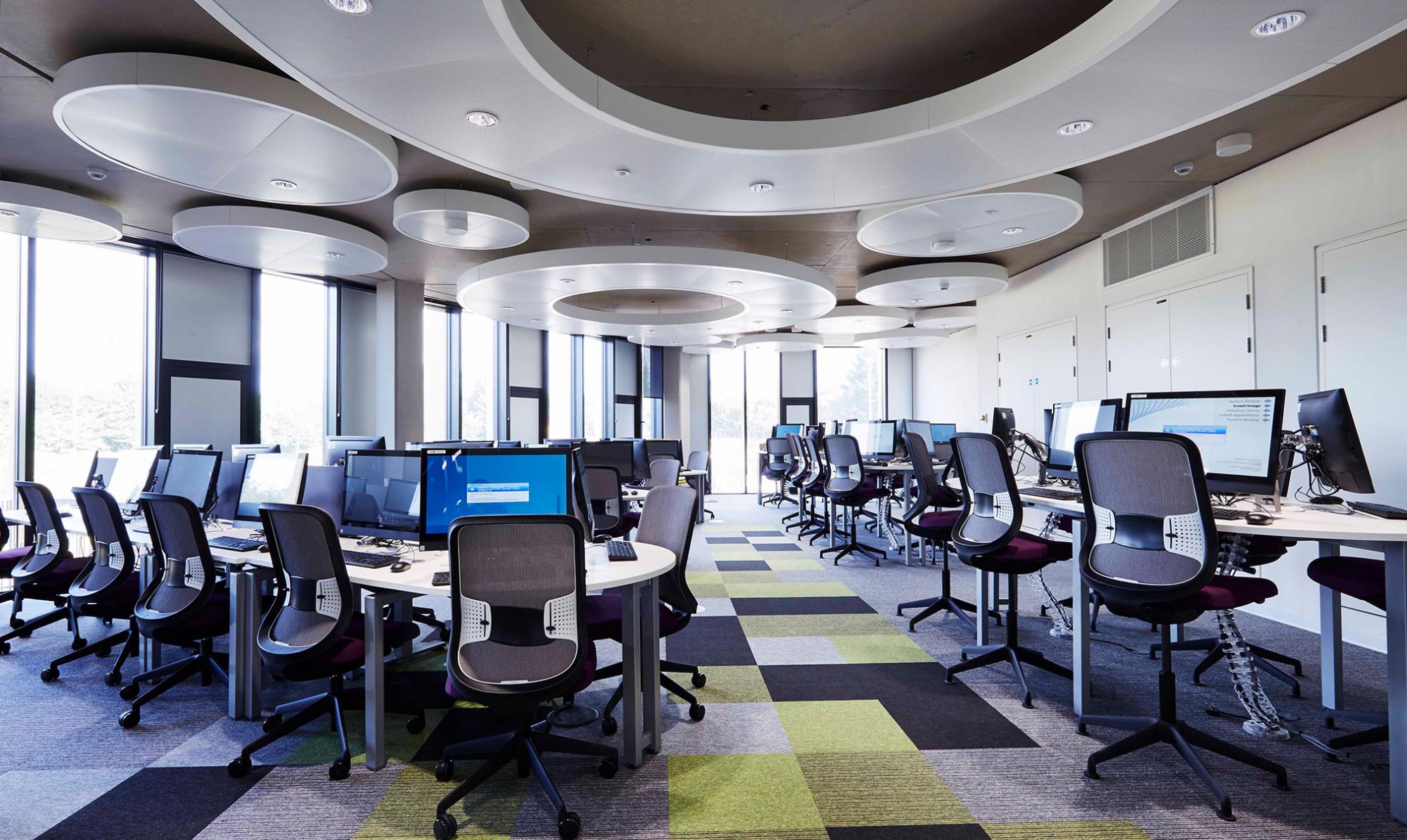

University of Birmingham Library — DO-HB & HBC
PWC — DO-HBA
Coventry University — DO-HBA

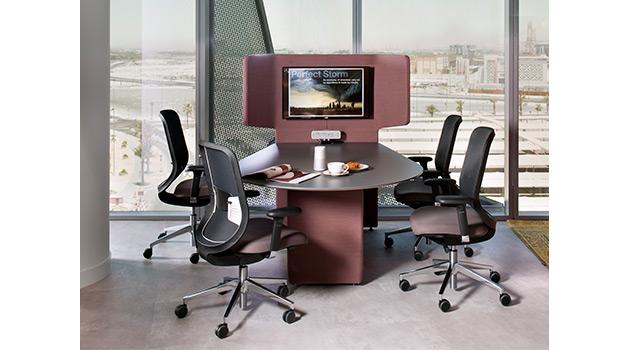

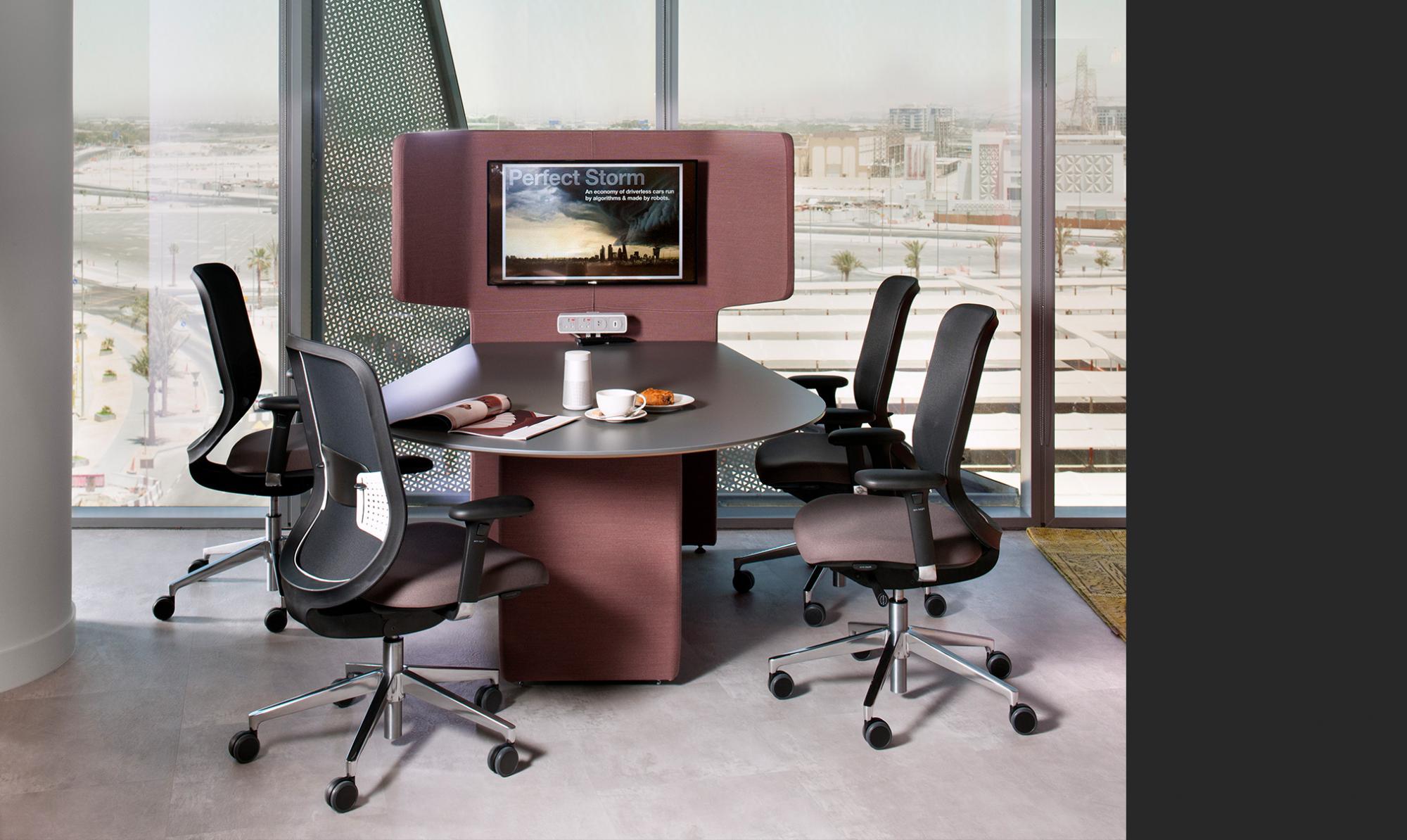

Smartworking Dubai — DO-HBA
Interserve Pargon — DO-HBA
Pension Company — Do-HBA

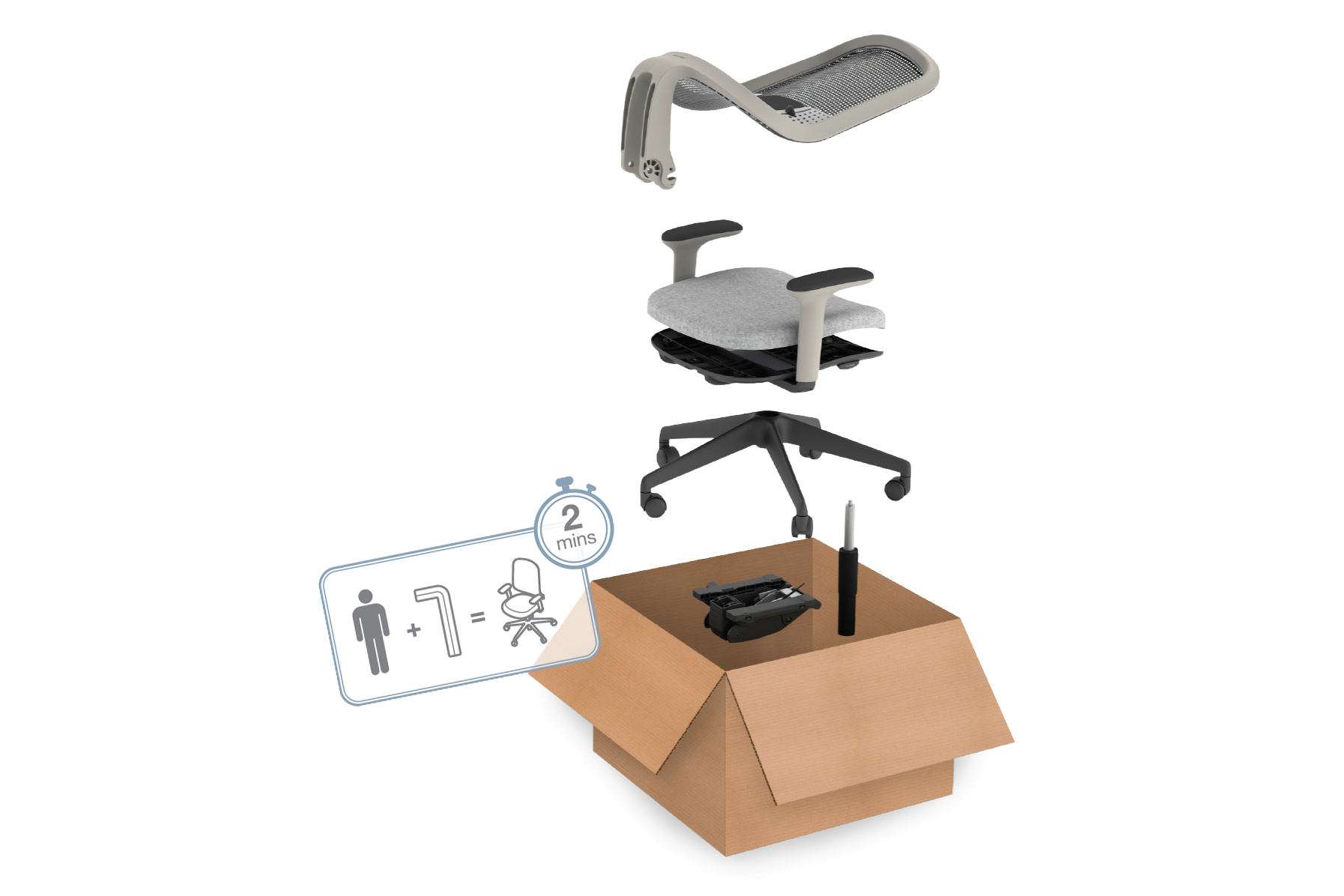

DO is innovative in terms of the materials used and the way it’s assembled and transported.
1/1

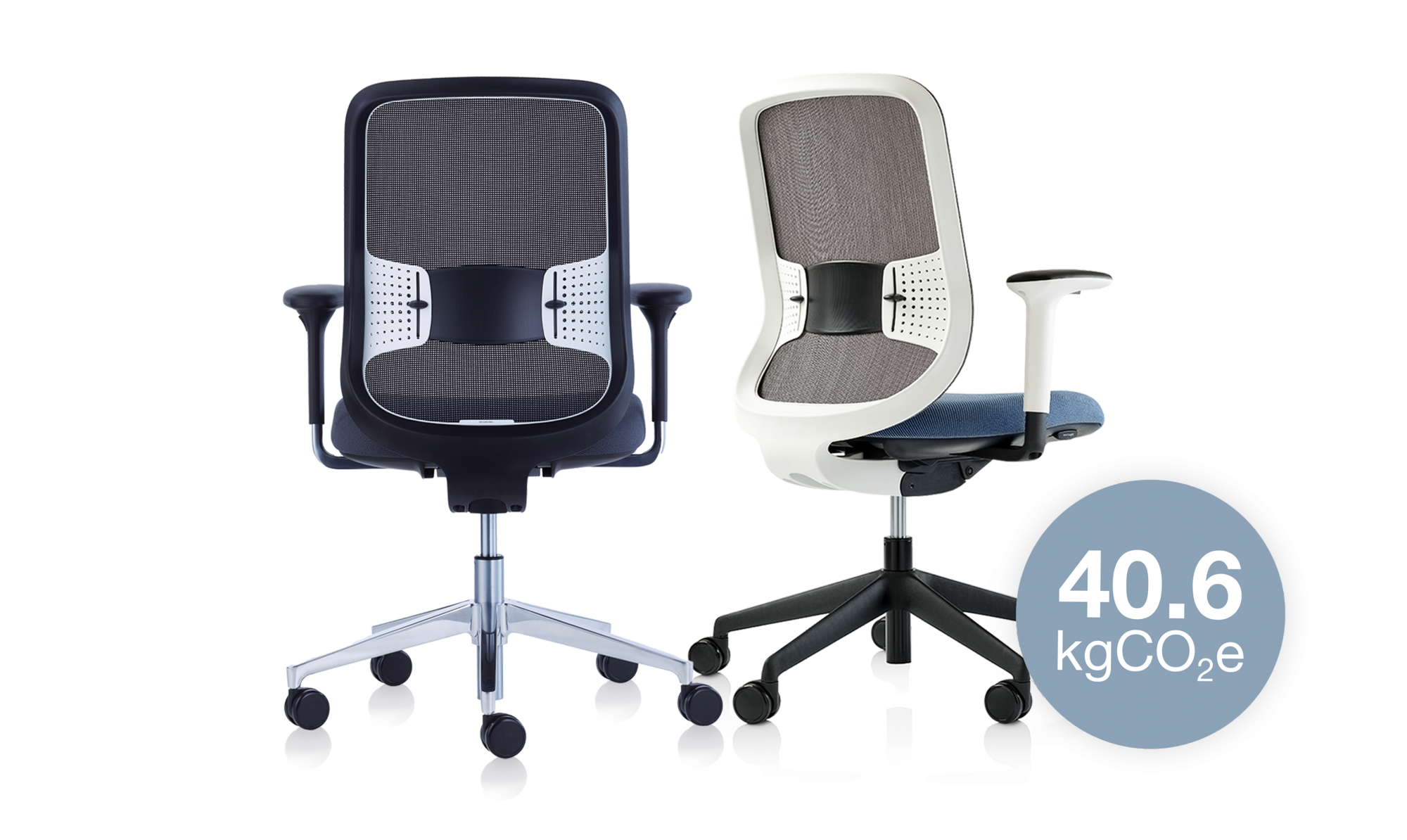

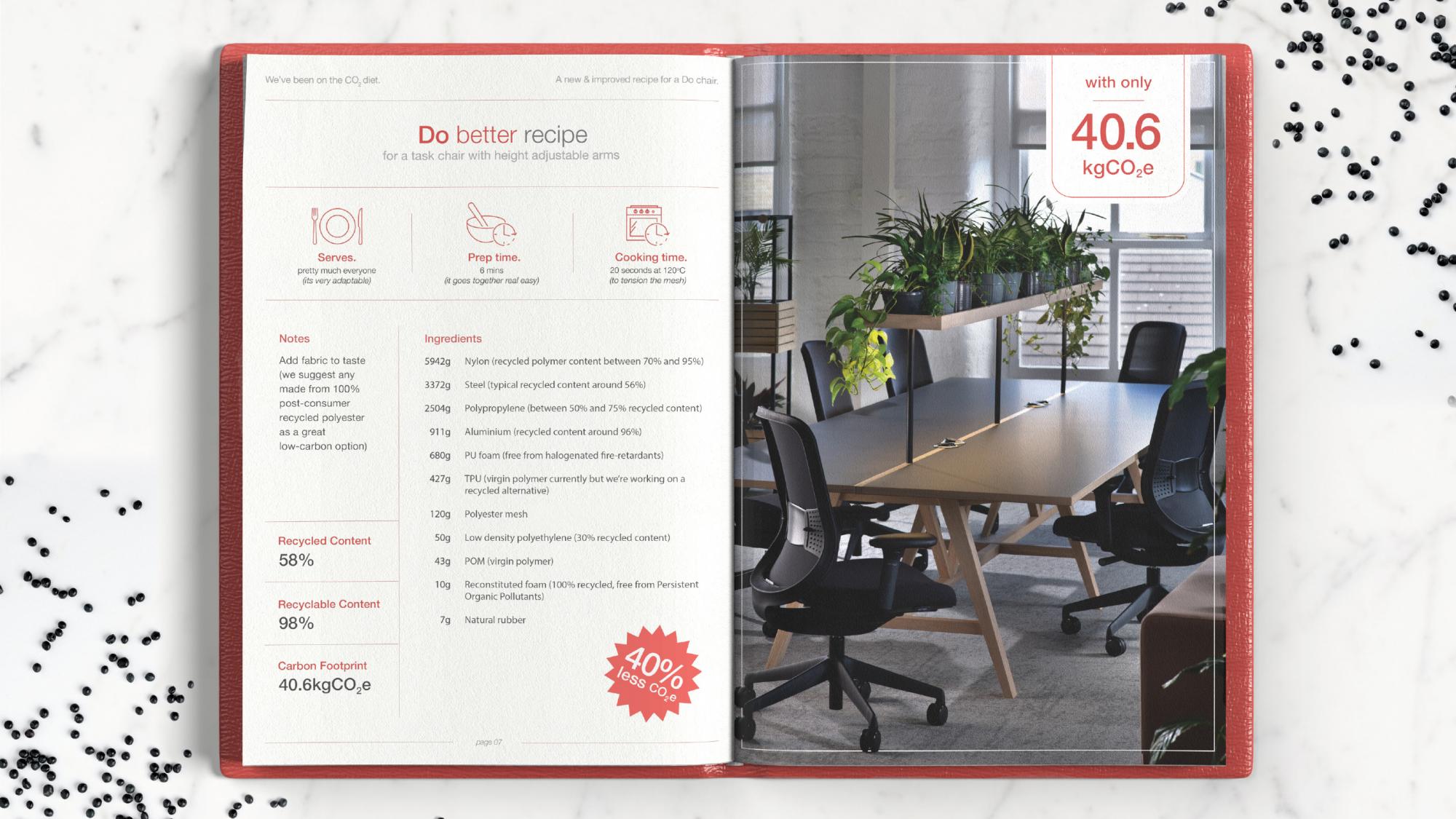

Sustainability
00:00
Do Video

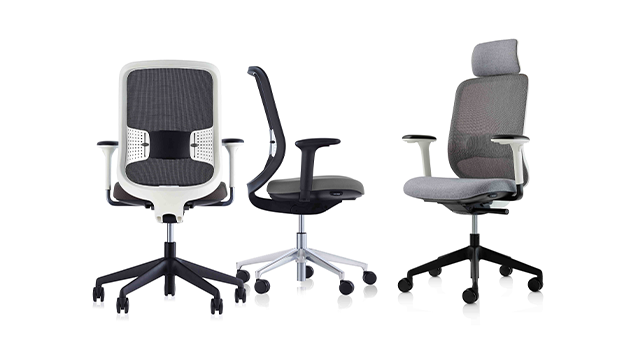

Product range

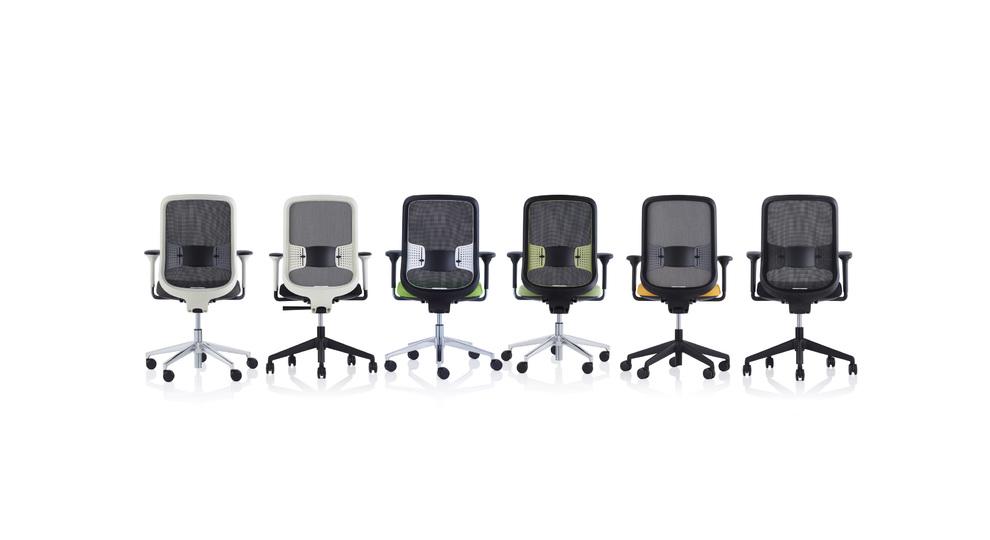

The Do family consists of 6 variants

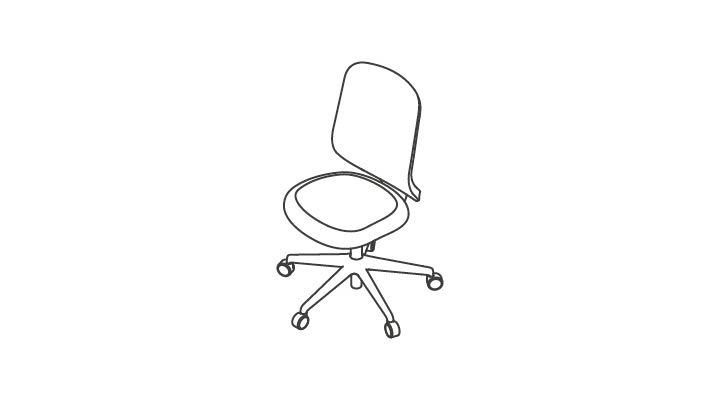

DO-HB
Task Chair
Height 970 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]

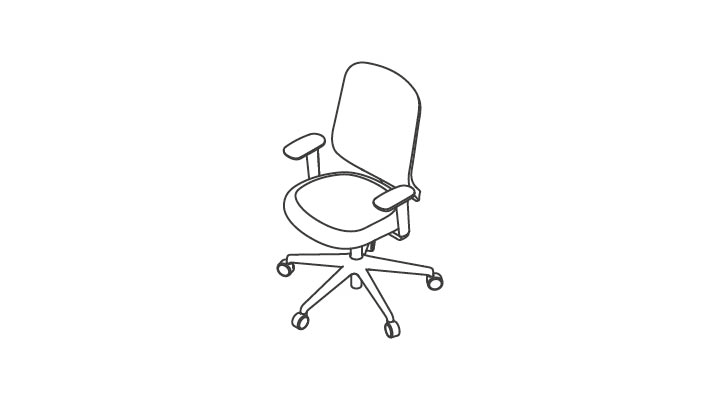

DO-HBA
Task Armchair
Height 970 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]
DO-HBH
Task Chair with Headrest
Height 1170 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]

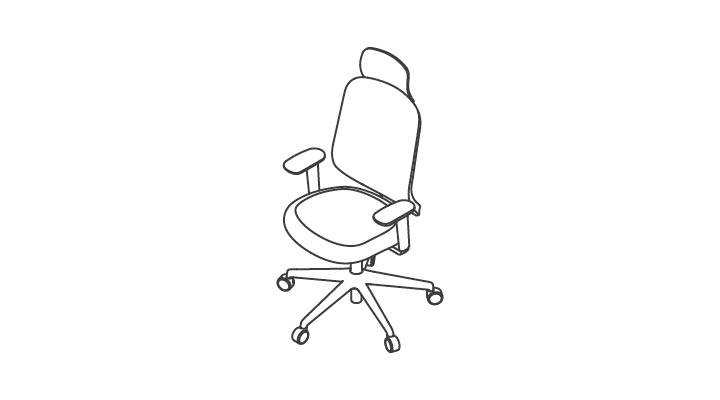

DO-HBHA
Task Armchair with Headrest
Height 1170 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 445-575 [mm]
Seat Depth 405 [mm]

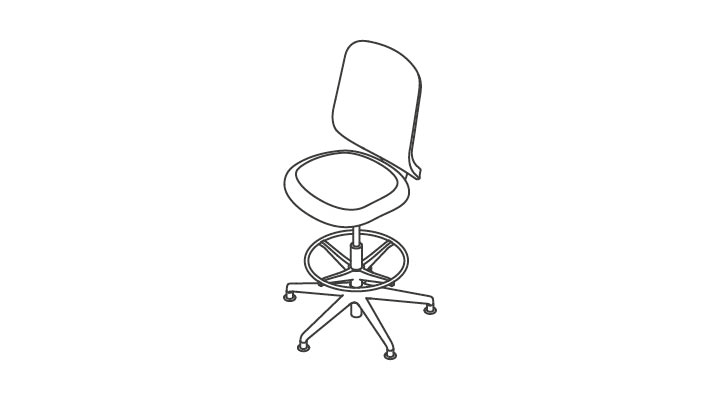

DO-HBC
Counter Height Chair
Height 1240 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 695-953 [mm]
Seat Depth 405 [mm]
Width 660 [mm]
Depth 660 [mm]
Seat Height 695-953 [mm]
Seat Depth 405 [mm]
1+
Product
specifications
Standard Product Description
Castors: 65mm Hard Black Castor.
Glides: Fixed Glides on counter-height chairs. Available at no additional cost on all other models.
Base: 26 inch Black Nylon Base as standard, with removable collar to aid recycling.
Mechanism: Standard Mechanism. Synchronous and weight balancing action with up to 20 deg of recline. Non locking to encourage movement throughout the day.

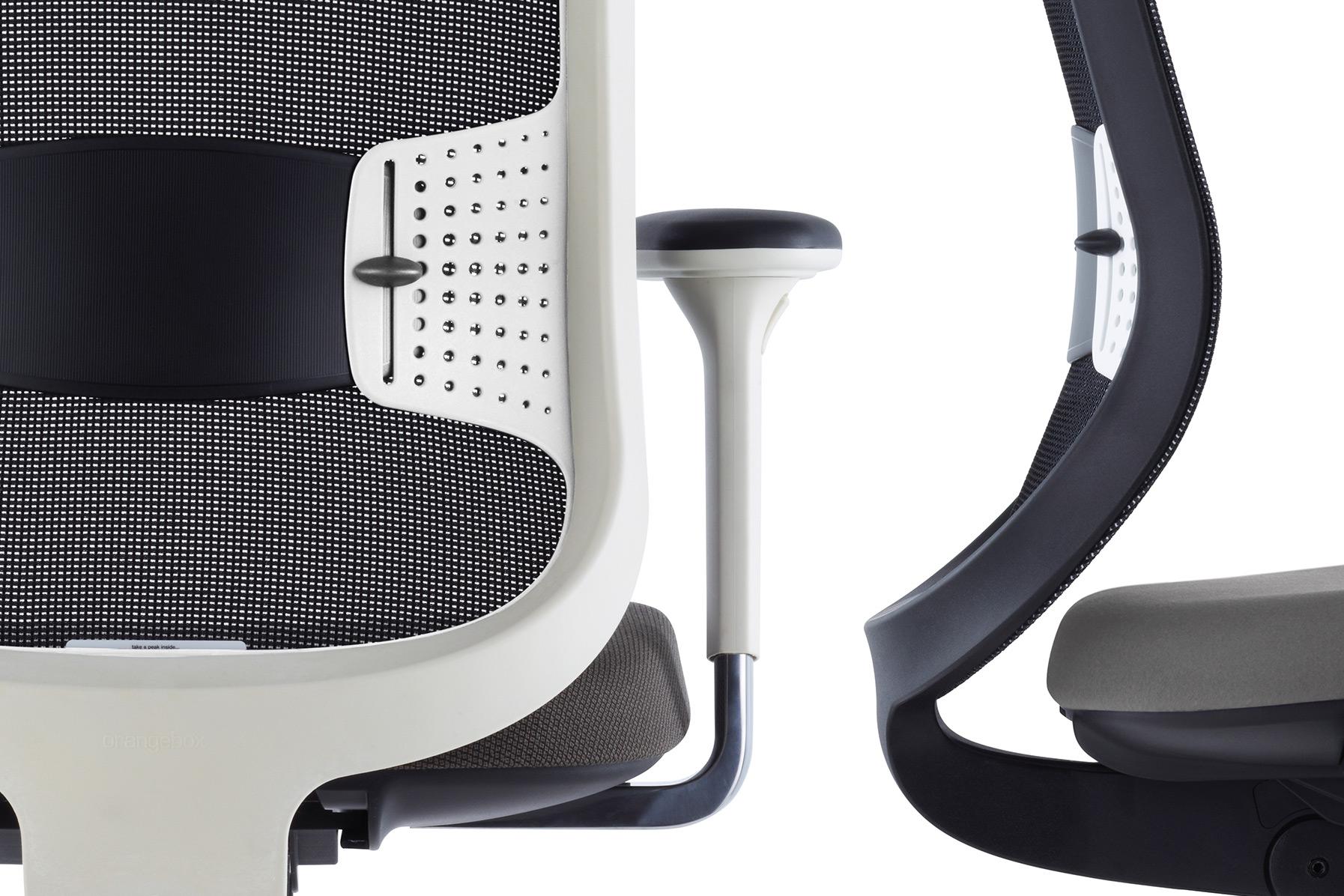

Arms: Adjustable Arms as standard (HBA, HBHA, HBCA). Arms are colour matched to backrest, available in Black or White. Black TPU, soft touch armpad with 100mm of height adjustment.
Backrest Frame: Available in Black or White.
Backrest Upholstery Plate: Available in Black, White, Grey or Leaf Green.
Backrest Material: Black ‘techincal’ mesh, Sheer mesh or Grey ‘upholstered’ mesh.
Lumbar Pad: Black, flexible TPU pad with 100mm of height adjustment.
Headrest: Frame colour matched to backrest and upholstery cover matched to seat cover.
Gas Lift: Black, powder coated steel barrel on task chairs with Black extra-height lift and foot-ring fitted to counter-height chairs.
Seat: Black seat pan with 76mm of seat depth adjustment. Integrated seat height and seat depth controls.
Seat Cushion: Combustion Modified High Resilient (CMHR) moulded foam. Seamless cover for fabric upholstery and panelled cover for leather or vinyl.
Optional Upcharges
Castors:
50mm Hard Black Castor (for nylon base),
50mm Soft Black Castor (for nylon base),
65mm Soft Black Castor (for nylon base) or
65mm Soft Black Castors (for aluminium base).
Base: Polished Aluminium Base as an upcharge.
Mechanism: Mechanism with Travel Limiter.
Upholstery: Luxury seat upholstery.
If vinyl upholstery is required, the luxury upholstery charge will be incurred.
Coat Hanger: Available as an upcharge.
Resources
Download resources directly or add them to your download box to download in a batch
Studio Images [10 files]
DO-HBA
High Res
Low Res
DO-HBA
High Res
Low Res
DO-HBA
High Res
Low Res
DO-HBA
High Res
Low Res

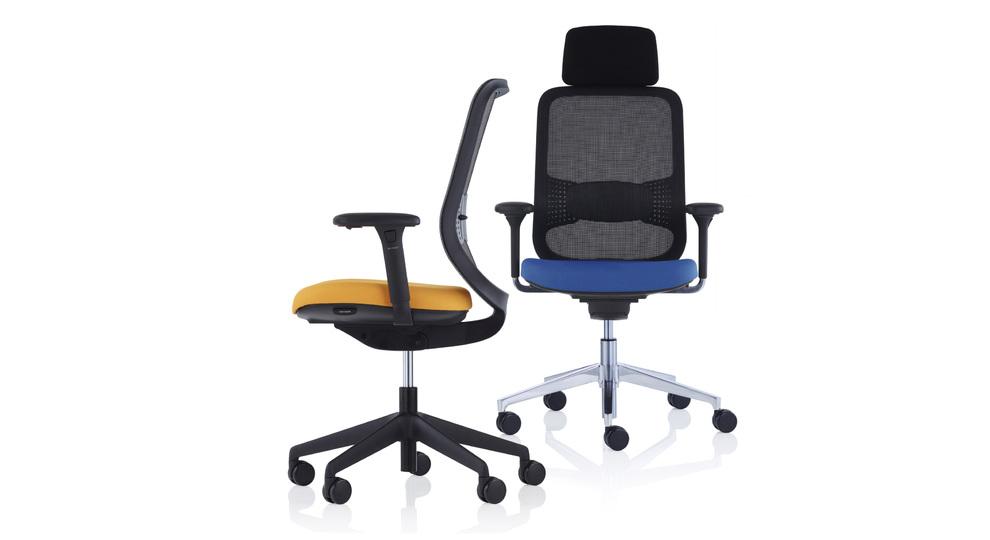

DO-HBA & HBHA
