Flo…is designed for maximum fit with minimum fuss.
Three years of research and development have resulted in a simple set-up chair offering a greater range of adjustment than any other, making it a game changer in specialist ergonomic seating.

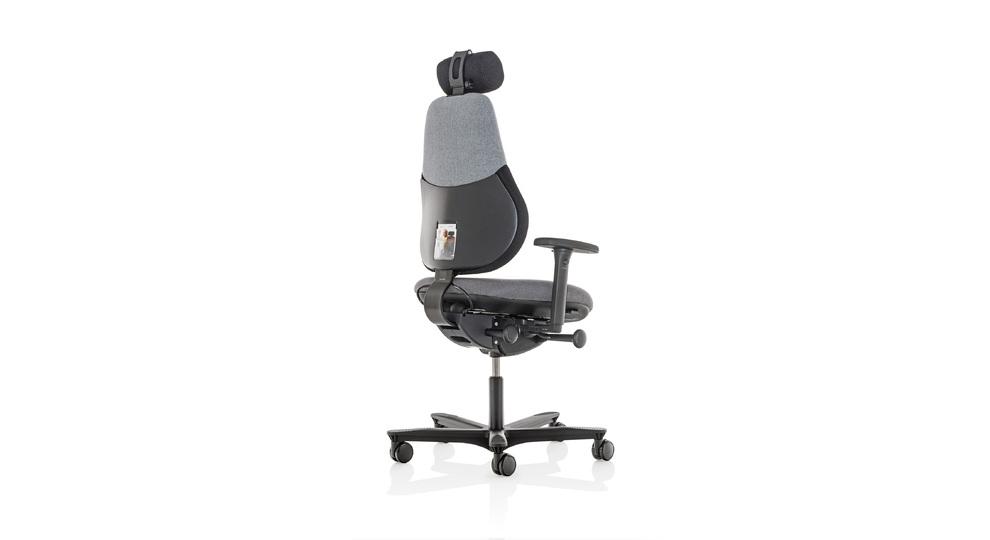

The combination of an accessible training guide, online support and an inbuilt indexing system for recording individual settings means there’s no need to stress if someone else uses Flo. Easy-to-reach controls and a purpose-designed compartment for the back air pumps allow you to reset it to meet your specific requirements quickly, easily and without hassle.
As a result, Flo can be shared and used by a number of people, and in cases where the original user’s needs change or if they leave can easily be set up to meet different occupational health requirements.
Most office chairs are designed to conform to standards and anthropometric data that are now, arguably, out of date. Ill-fitting set-ups and lack of movement can accelerate the onset of fatigue, and the problem is exacerbated when workstations are shared. That’s why Flo has a broad range of adjustments as standard, and offers a simple choice of mid and high-back combinations among its options.
Designing Flo
Jim Taylour,
Head of Design & Wellbeing

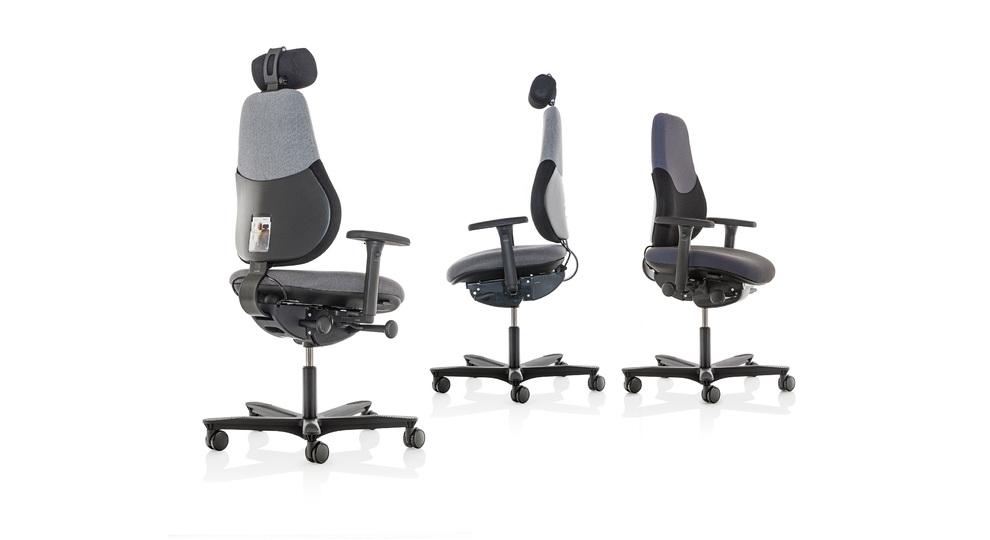

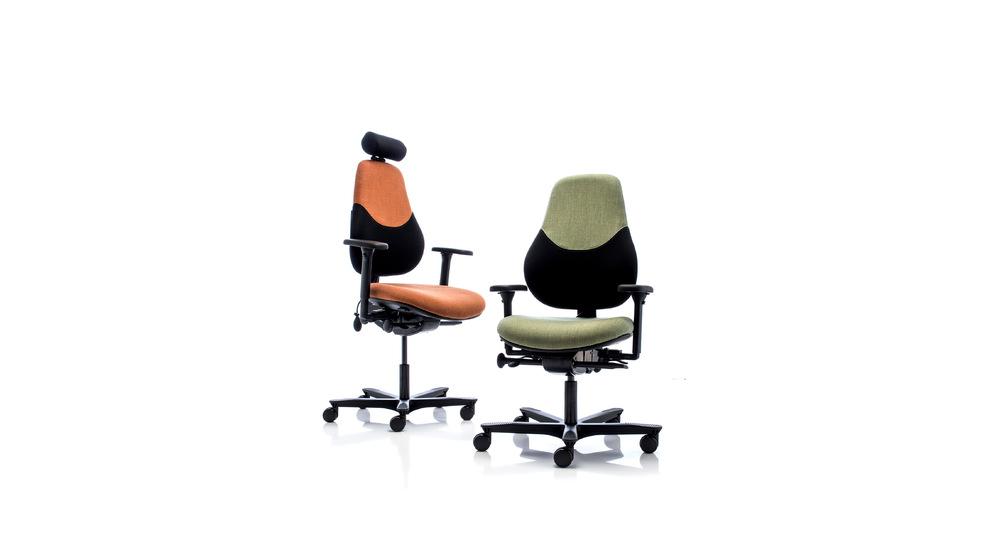

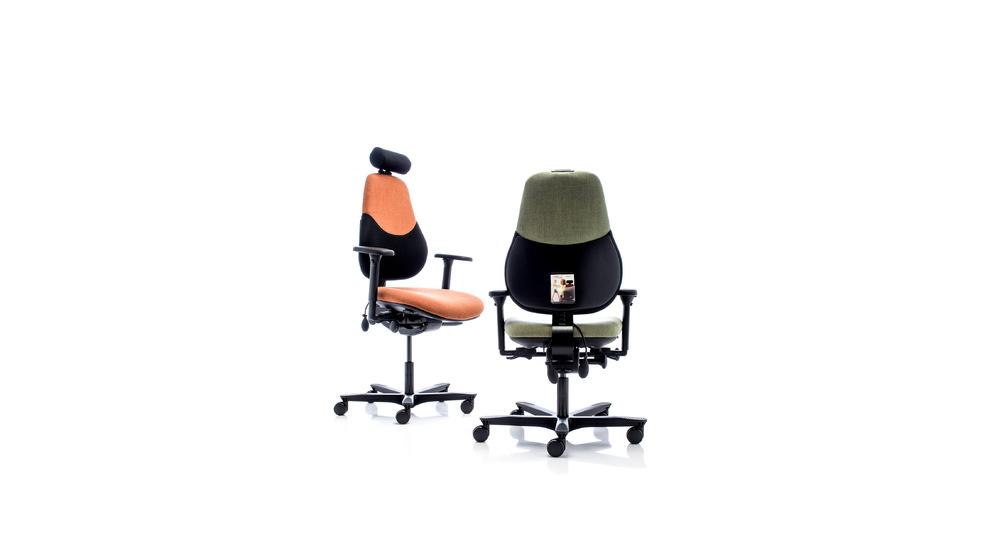

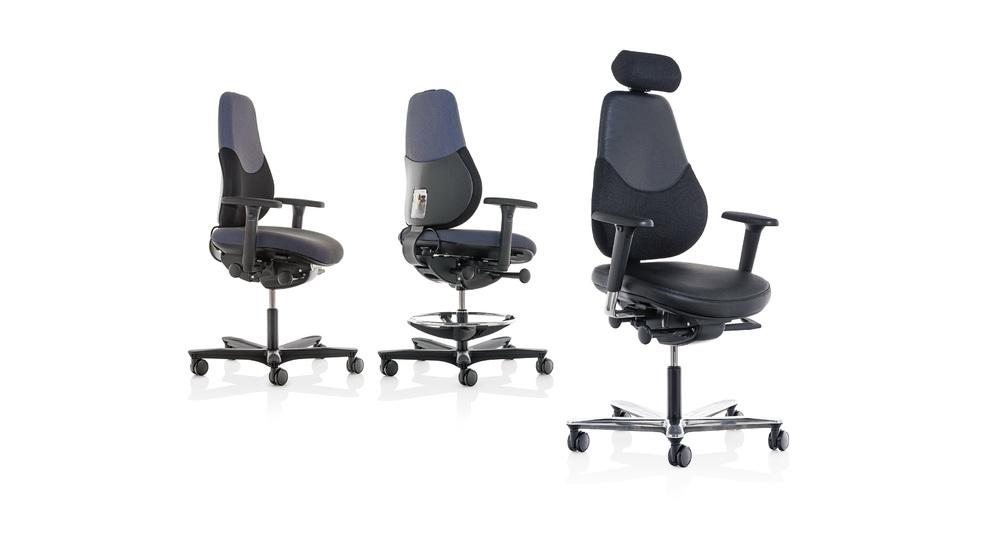

The Flo family consists of 8 variants

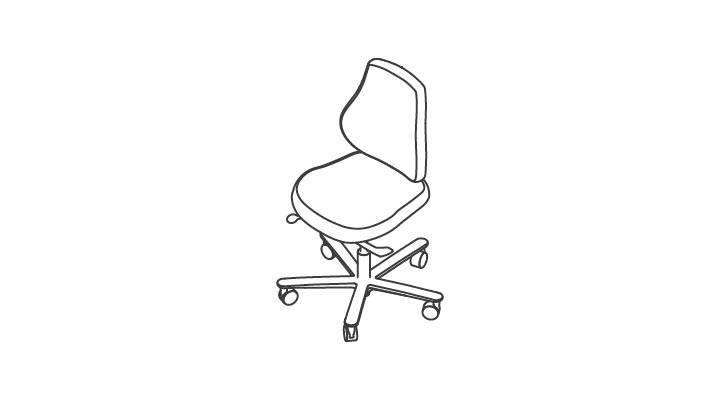

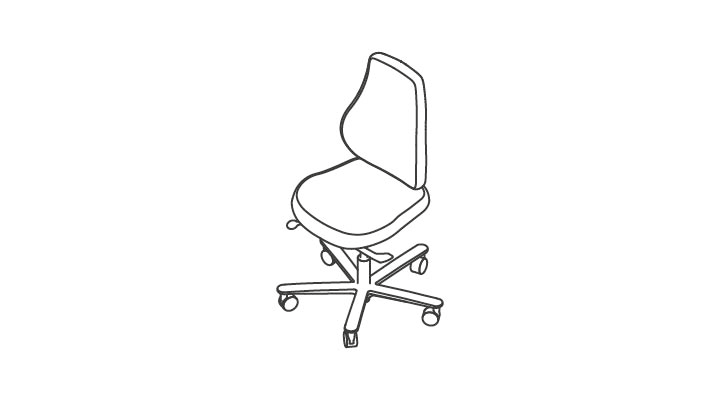

FLO-MB
Midback Swivel Ergonomic Task Chair

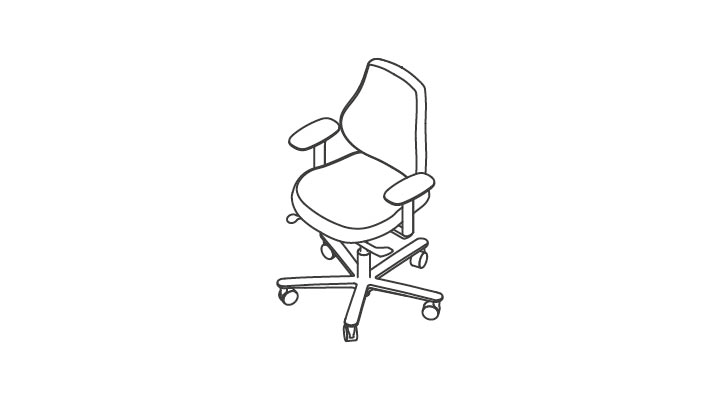

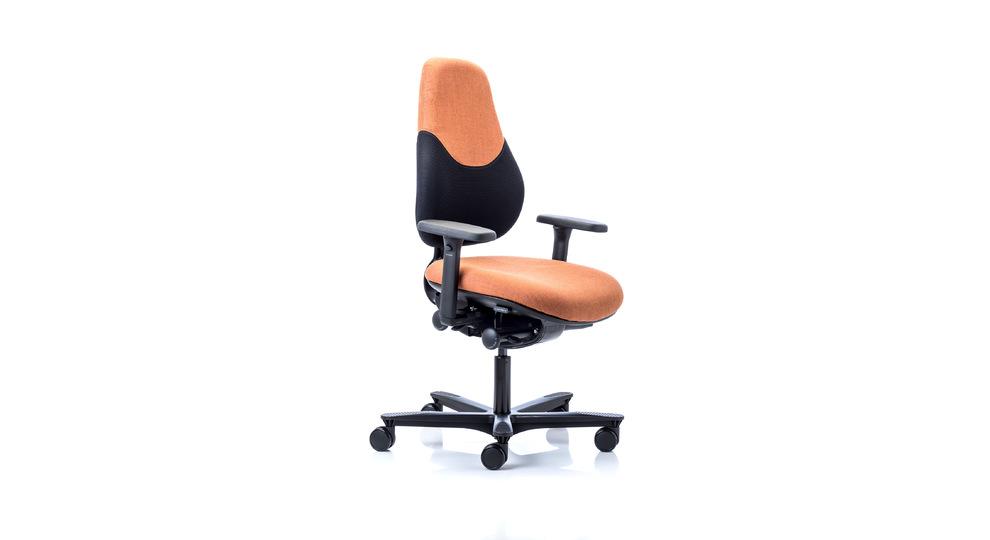

FLO-MBA
Midback Swivel Ergonomic Task Armchair

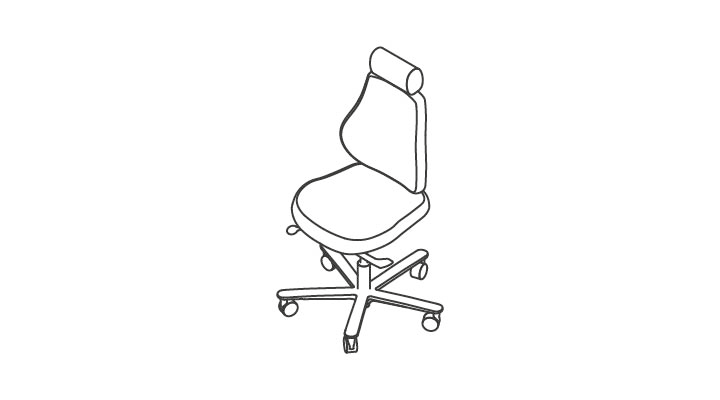

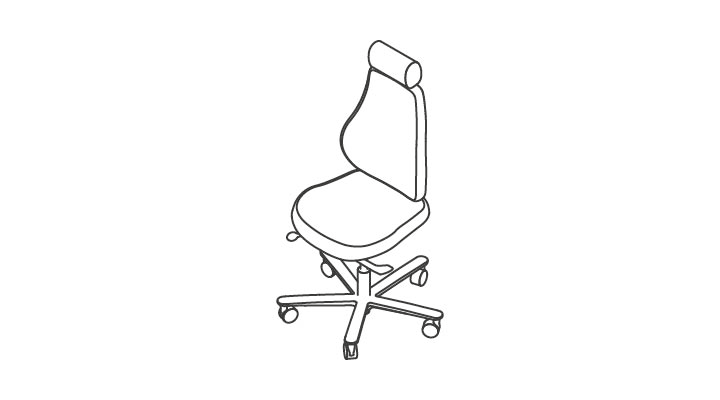

FLO-MBH
Midback Swivel Ergonomic Task Chair with Headrest

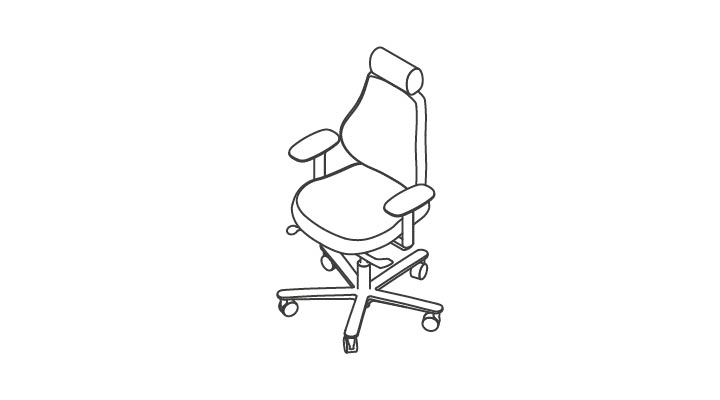

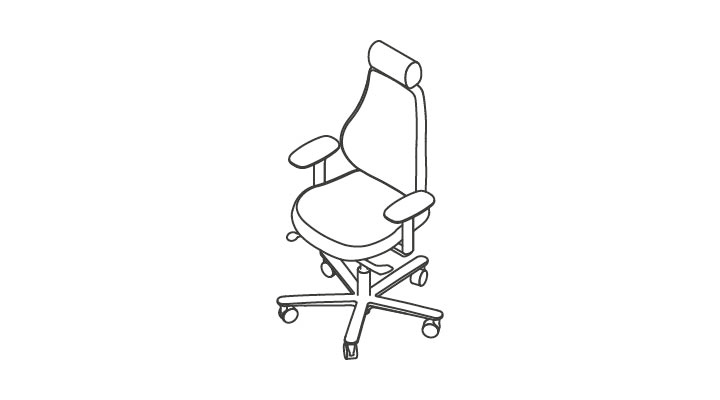

FLO-MBAH
Midback Swivel Ergonomic Task Armchair with Headrest

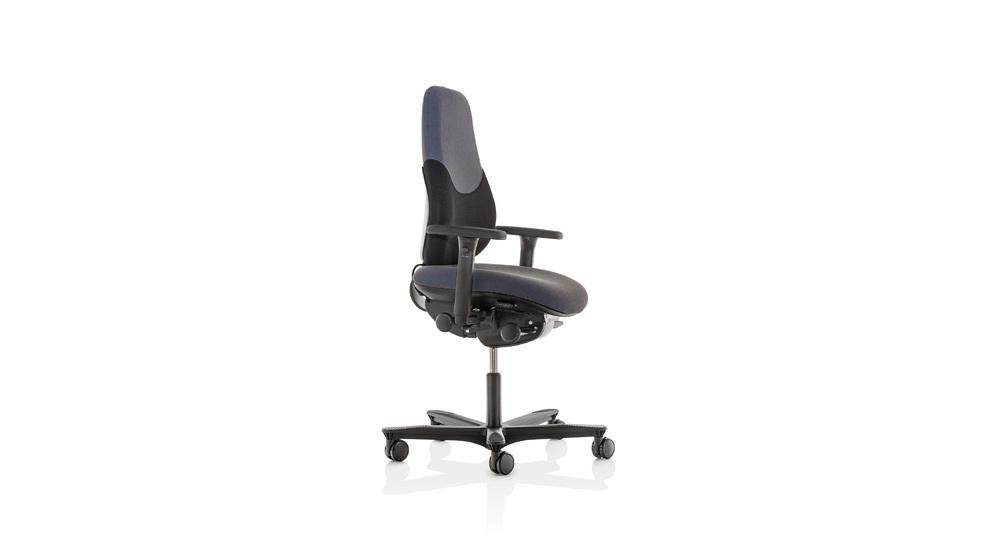

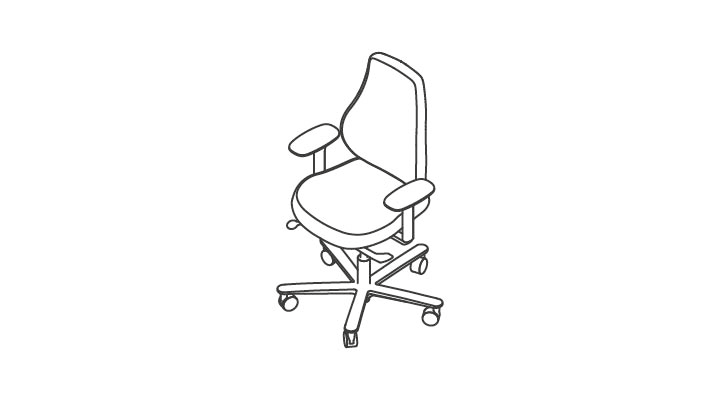

FLO-HB
Highback Swivel Ergonomic Task Chair
Standard Product Description
Castors: 65mm Black Castors.
Base: Low level Black Nylon Base, 26 inch diameter.
Gas Lift:
Standard Gas Lift (Black double action, 195mm travel).
Low Level Gas Lift available at no additional cost.
Mechanism: Standard Mechanism.
Non-synchronous action with up to 17 degrees of recline and 8 degrees of forward tilt. Independent back angle adjustment of 6 degrees.
Upholstery: Standard Upholstery. Default fabric is Xtreme Havana (Black) or Costa (Dark Blue).
Weight Range: 7 to 23.5 stone.

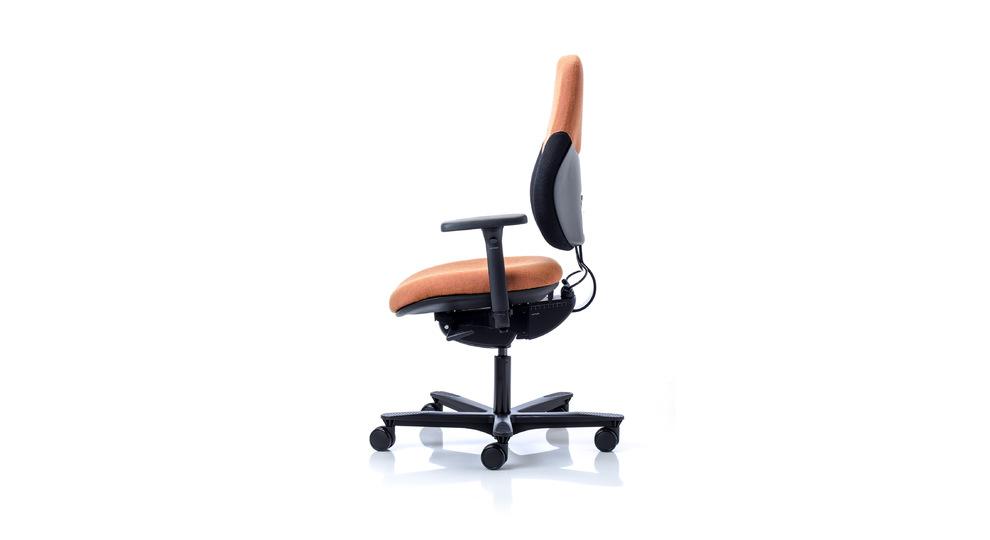

Seat: Standard Sliding Seat.
Black polypropylene sliding seat with 100mm of travel as standard. Seat and back cushions are replaceable / renewable via service.
Foam: Moulded CMHR foam.
Arms: Standard Arms. (MBA, MBAH, HBA, HBAH)
Black PU lockable arm pad with 360 degrees rotation, width adjustment, retraction adjustment and 100mm height adjustment.
Backstem: Back height adjustment mech with 100mm travel over 7 positions.

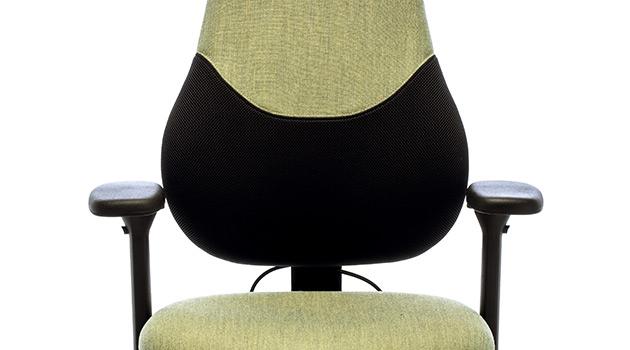

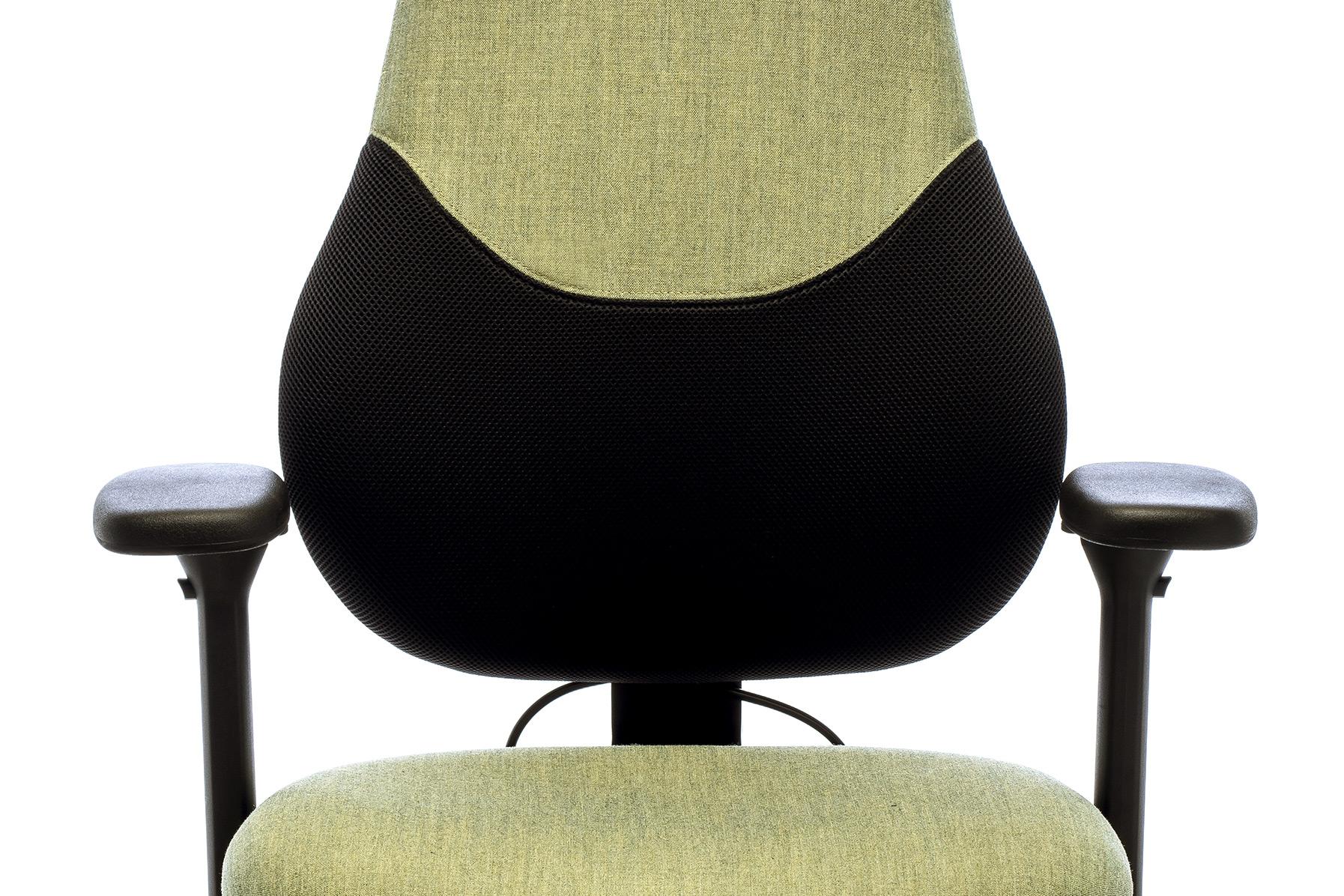

Back: Dual density foam with integral lumbar and thoracic pump as standard Index card.
Optional Upcharges
Castors: 65mm Brake unloaded castor (hard or soft).
Glides: Available as an upcharge.
Gas Lift:
Low Counter Height gas lift.
Low counter height gas lift and footring.
Low counter height gas lift and footplate.
High counter height gas lift.

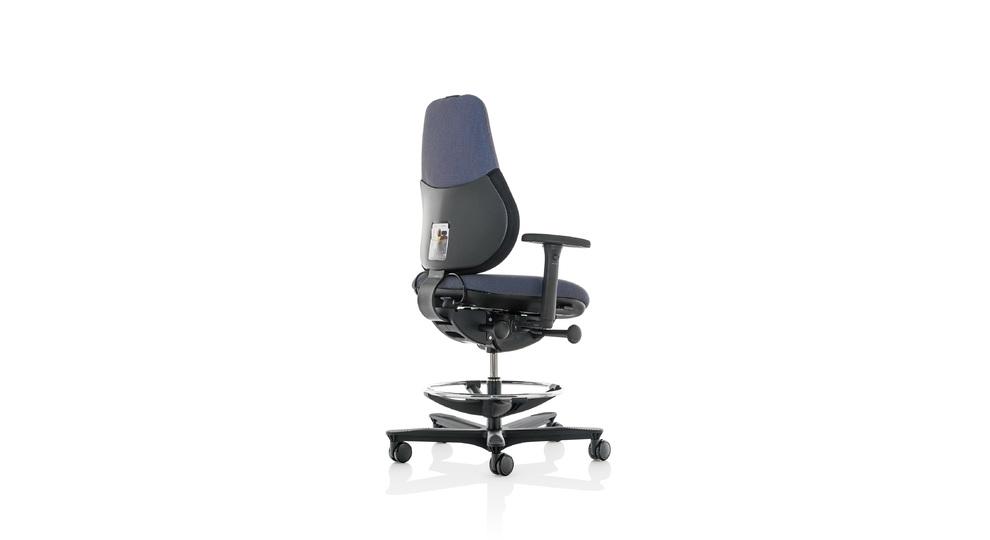

High counter height gas lift and footring.
High counter height gas lift with footplate.
Seat: Coccyx Cutout available as an upcharge.
Upholstery: Comfort Seat Quilt or Two Tone upholstery.
If vinyl upholstery is required the luxury upholstery upcharge will be incurred.
Retro fitting will incur a charge for engineer call out.
Headrest: 70mm vertical adjustment(retro-fittable).
