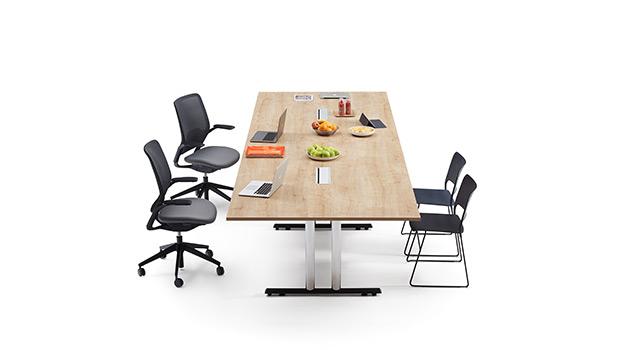

Convo is an adaptable collection of training, meeting and conference tables featuring a variety of shapes and a choice of top depths. The collection ranges from small footprint single seat tables through to large format 20-seater meeting tables, and features both static and flip-tops.
Convo’s flip-top tables can be quickly and easily reconfigured to respond to the ever-changing needs of the office. Top depths range from 700mm right up to 1200mm, thanks to the combination of our tried and tested flip release mechanism and low profile ski design, which gives stability even when tops are extra deep.
The frame design provides consistency across the Convo collection’s wide range of static and flip-top options, on ski widths of 600mm, 900mm & 1200mm. To better facilitate linking (where necessary), flip-top tables have square edge table top detailing: the static range can, however, be specified with any of our expansive range of edge finish options.
Available in a choice of top profiles (rectangle, barrel and oval top), Convo offers fully integrated power and data cable management and a low profile concealed castor in the ski leg assembly to improve portability.

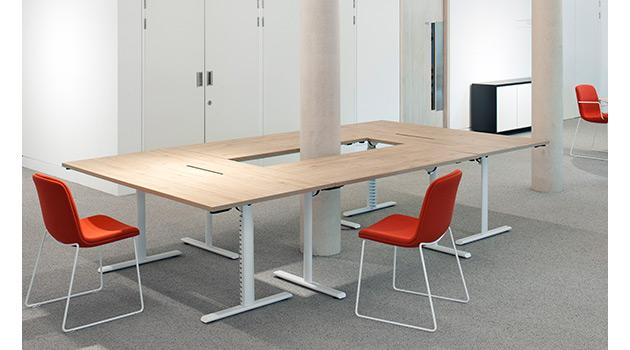

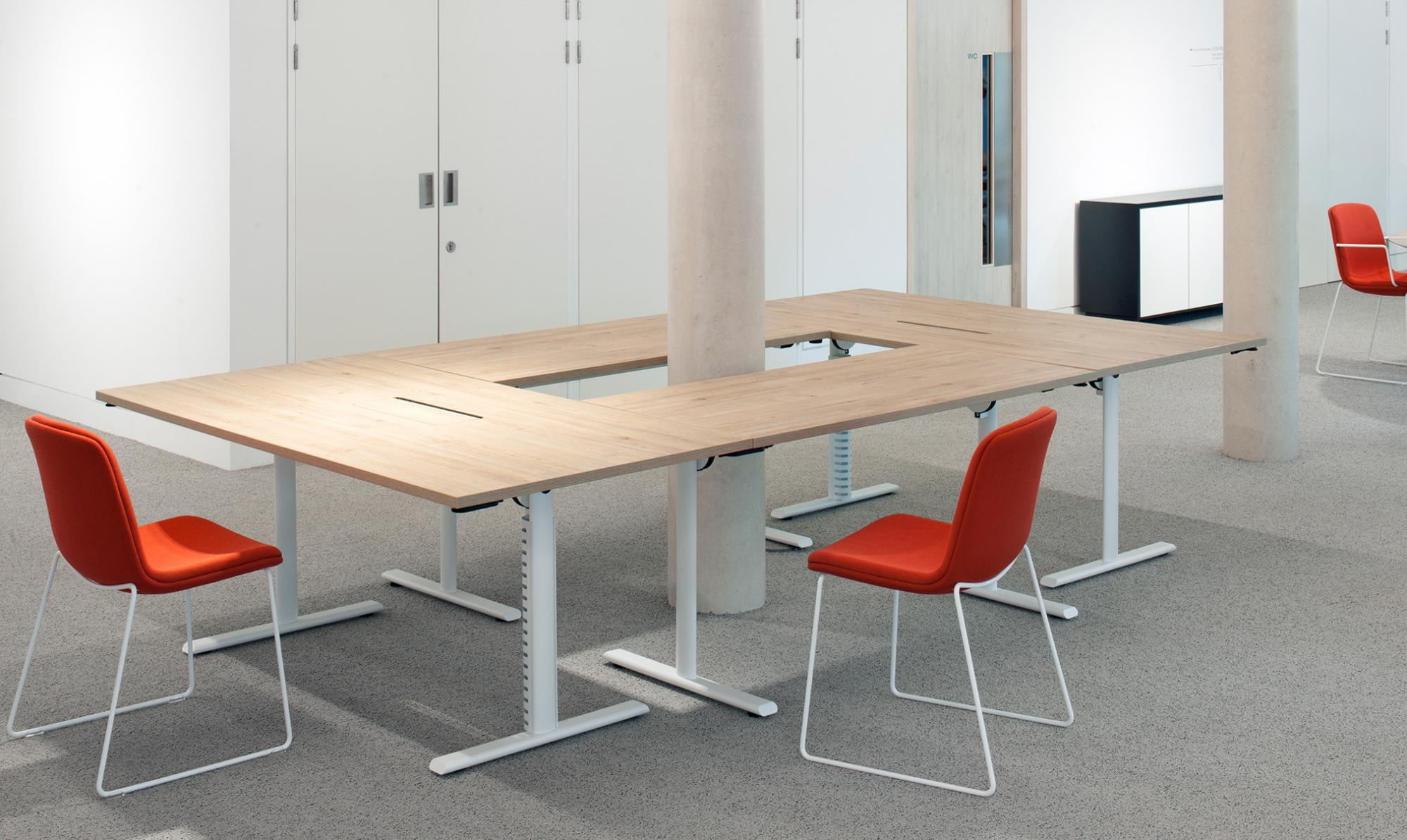

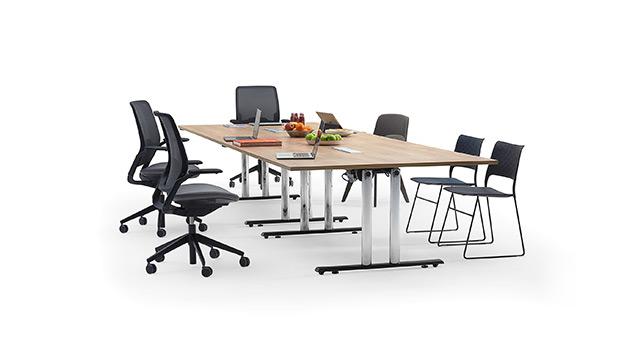

CONVO Group

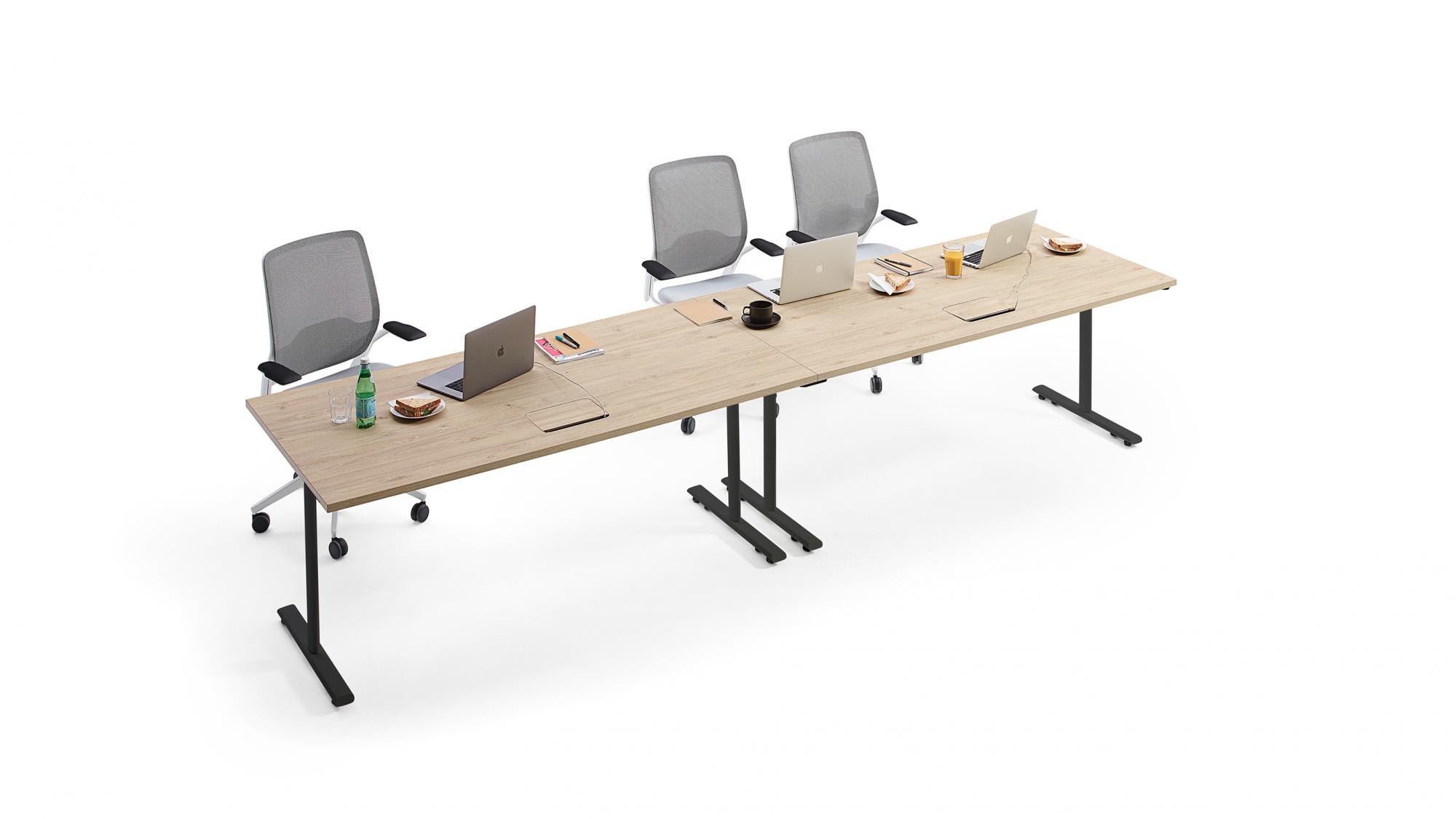

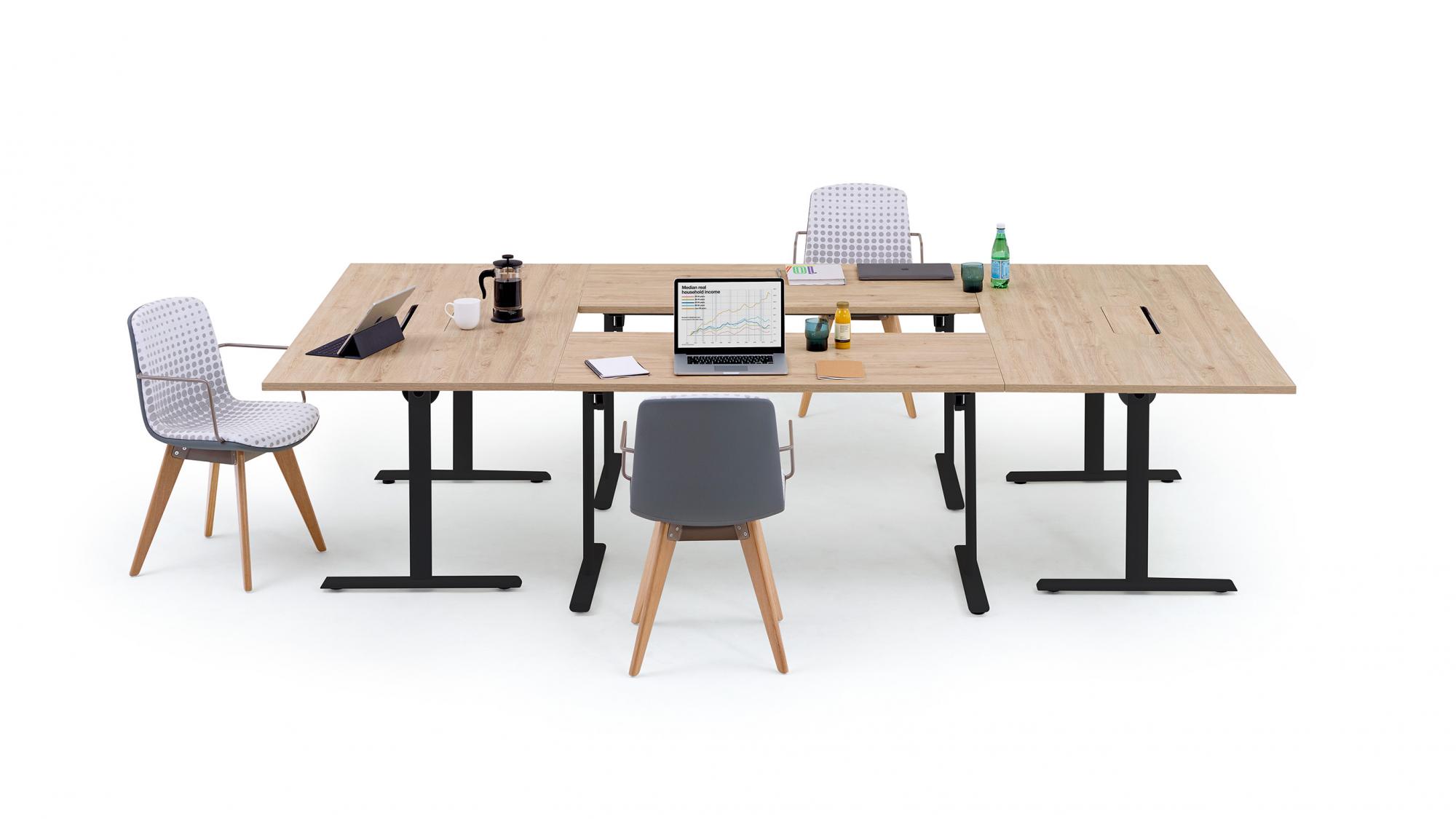

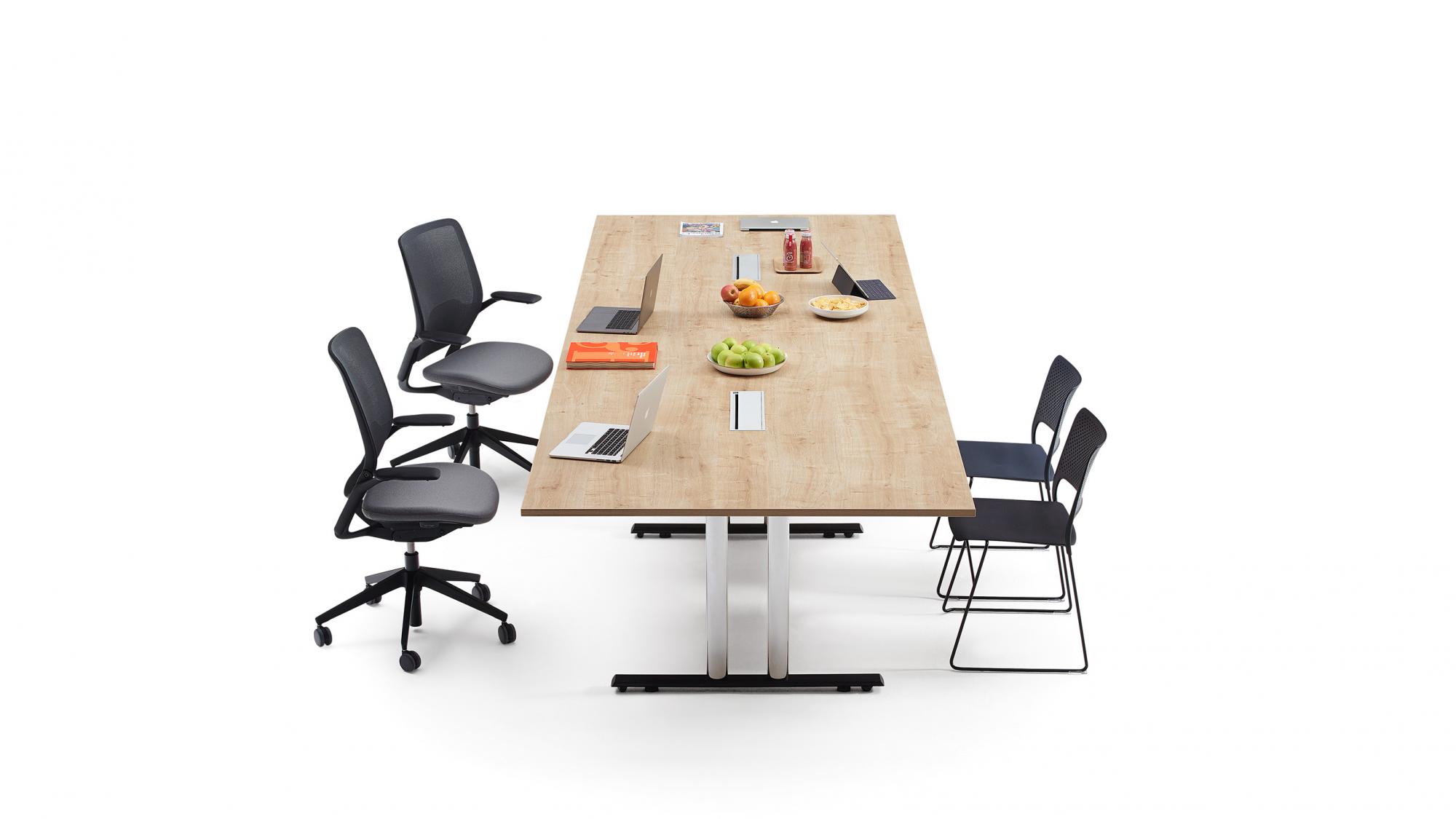

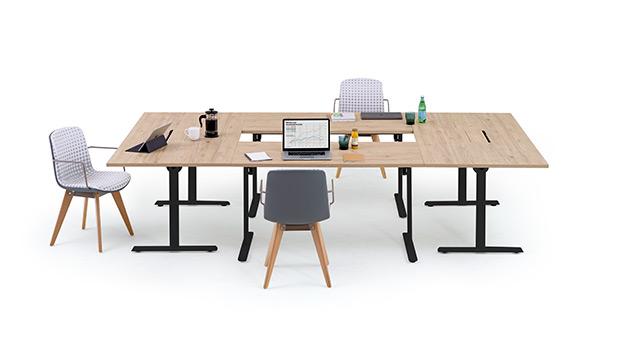

CONVO Configuration
CONVO
CONVO
1/1
Designing Convo
“With the biggest folding table in the range able to sit 12 people comfortably, the project's key challenge was the complex engineering involved in ensuring that even the largest flip-top tables would be stable, manoeuvrable and light weight.”
Words by Luke Palmer,
Lead Designer of Convo

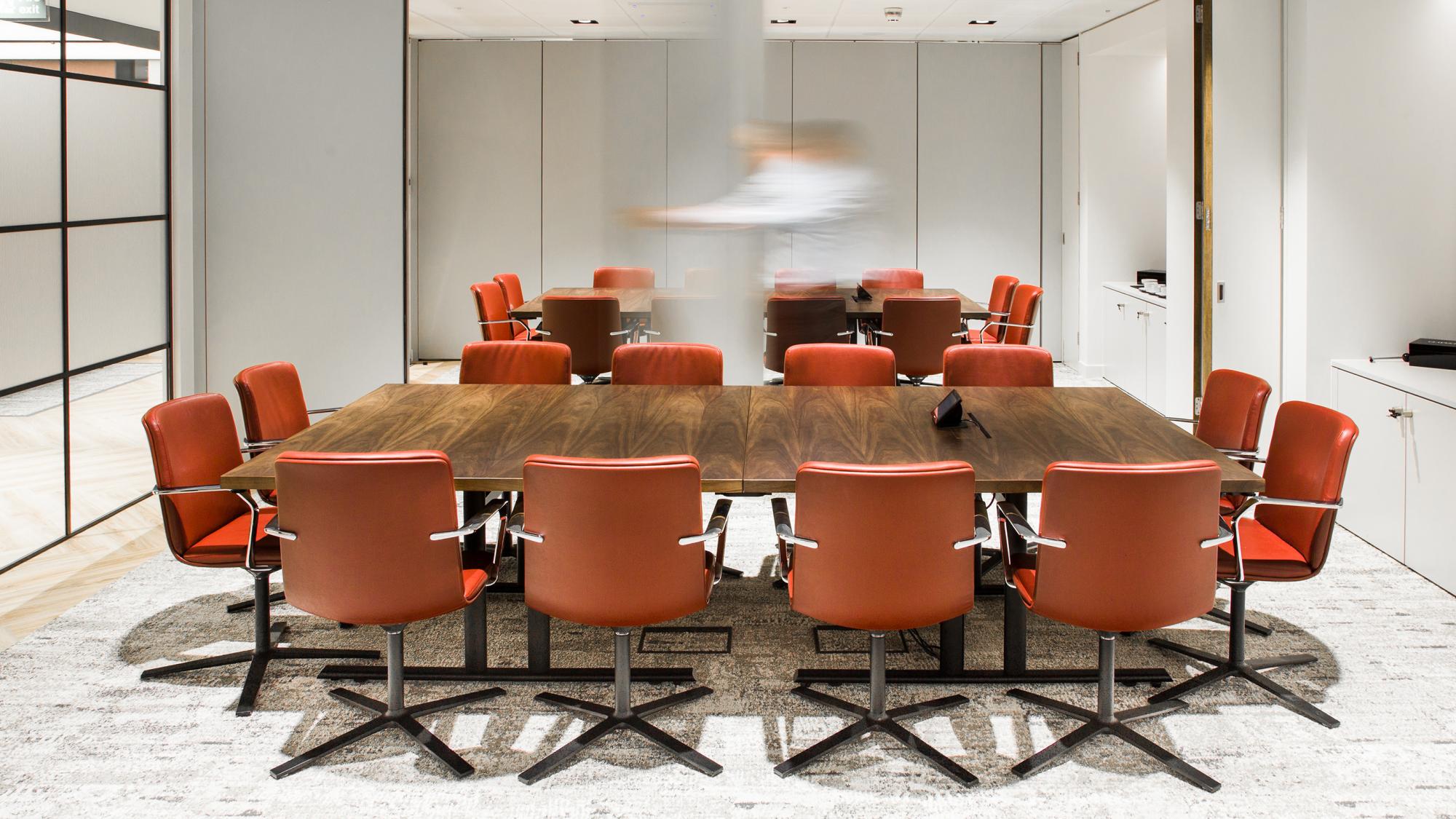

London Smartworking — CONVO Configuration

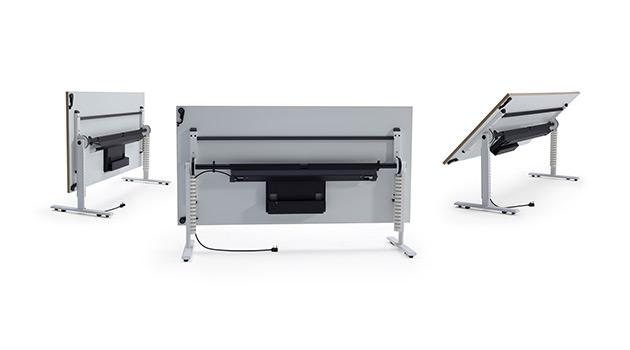

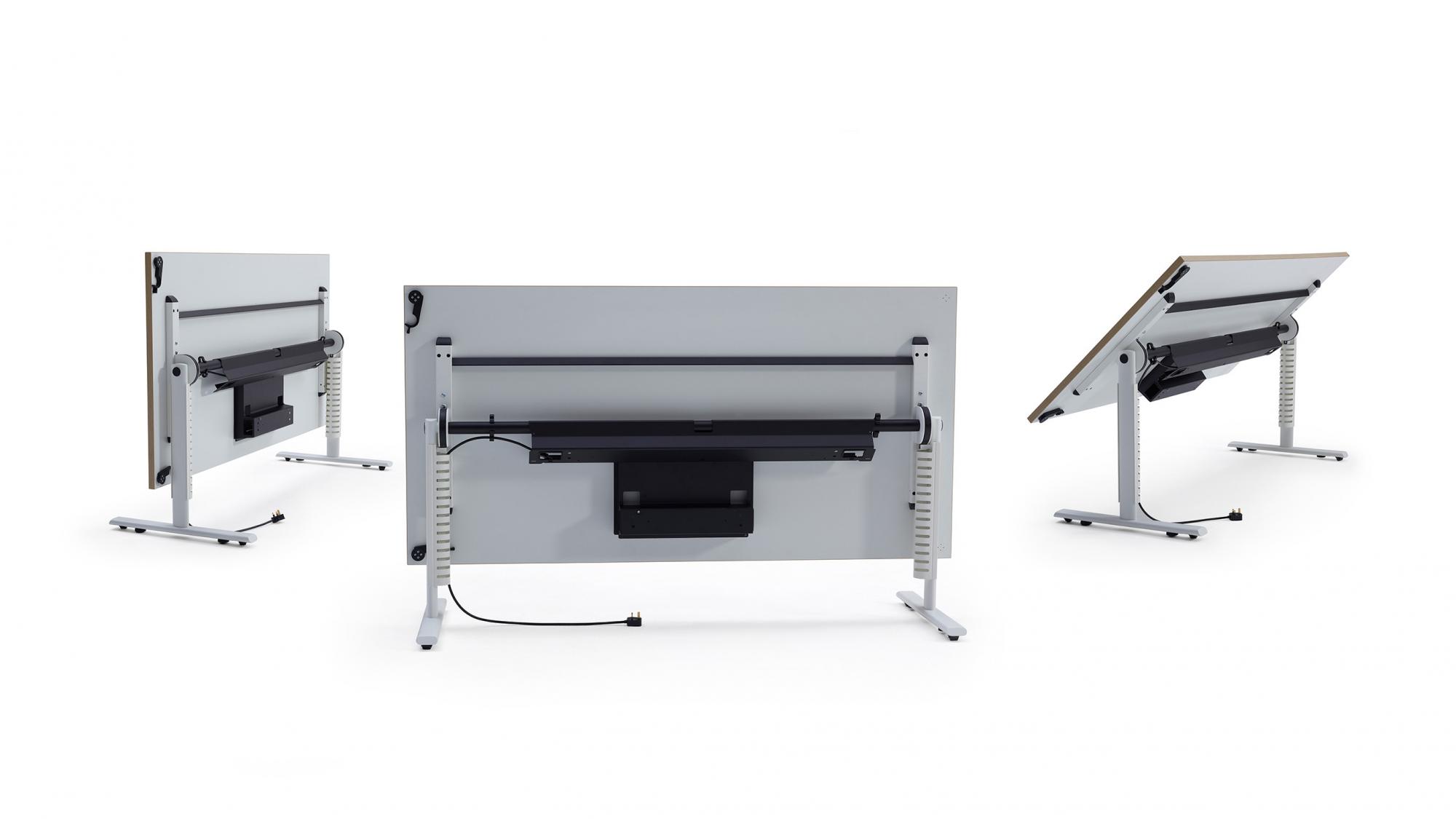

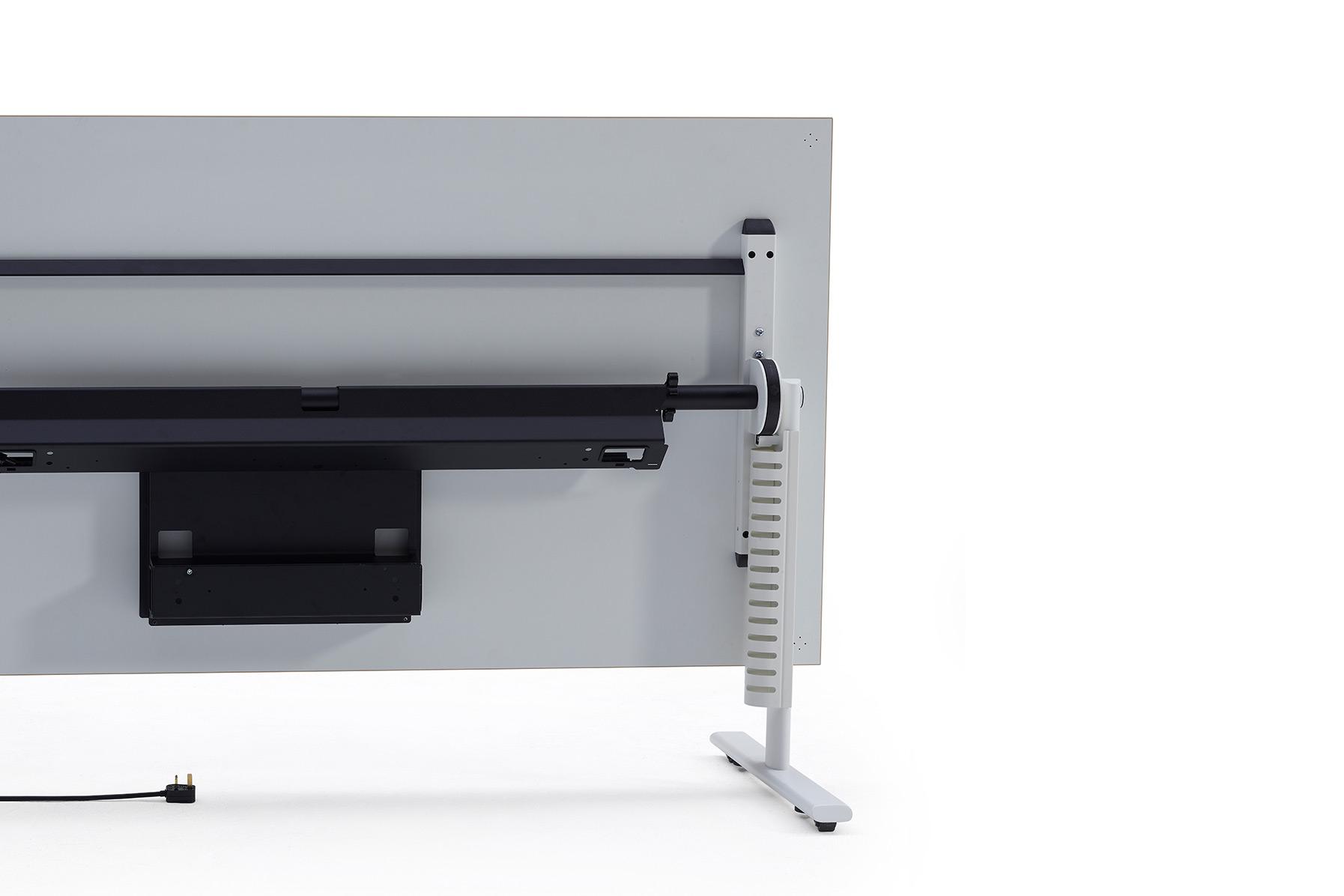

Flip-top functionality on a range of tops - from the standard 700mm to a new super width of 1200mm - gives Convo flexibility and portability.

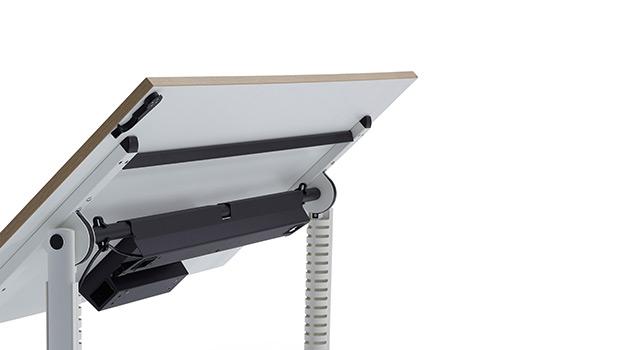

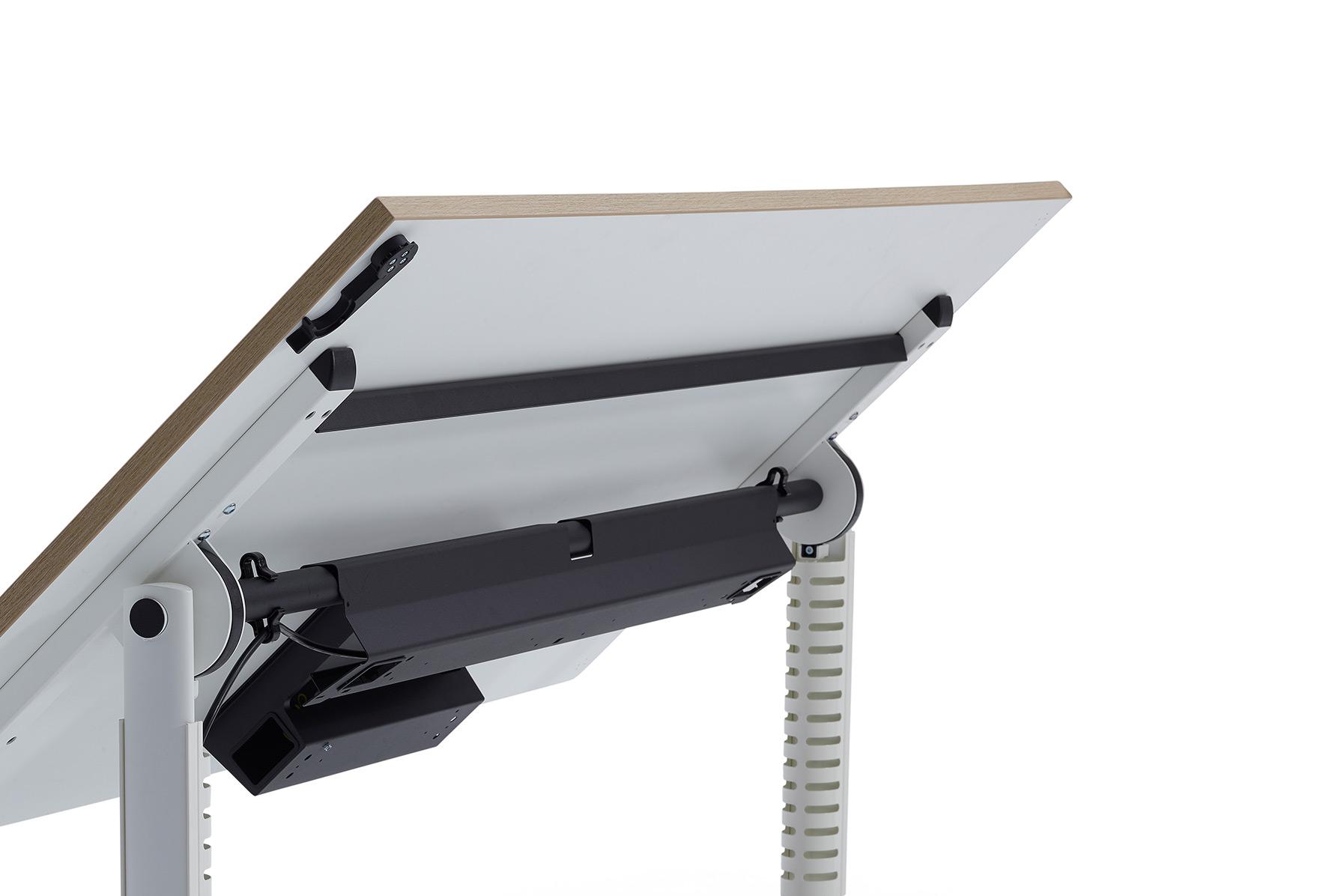

A concealed orbital castor featured across the diverse range of tables allows them to be moved around with ease.
1/1
00:00
Convo - Design Story

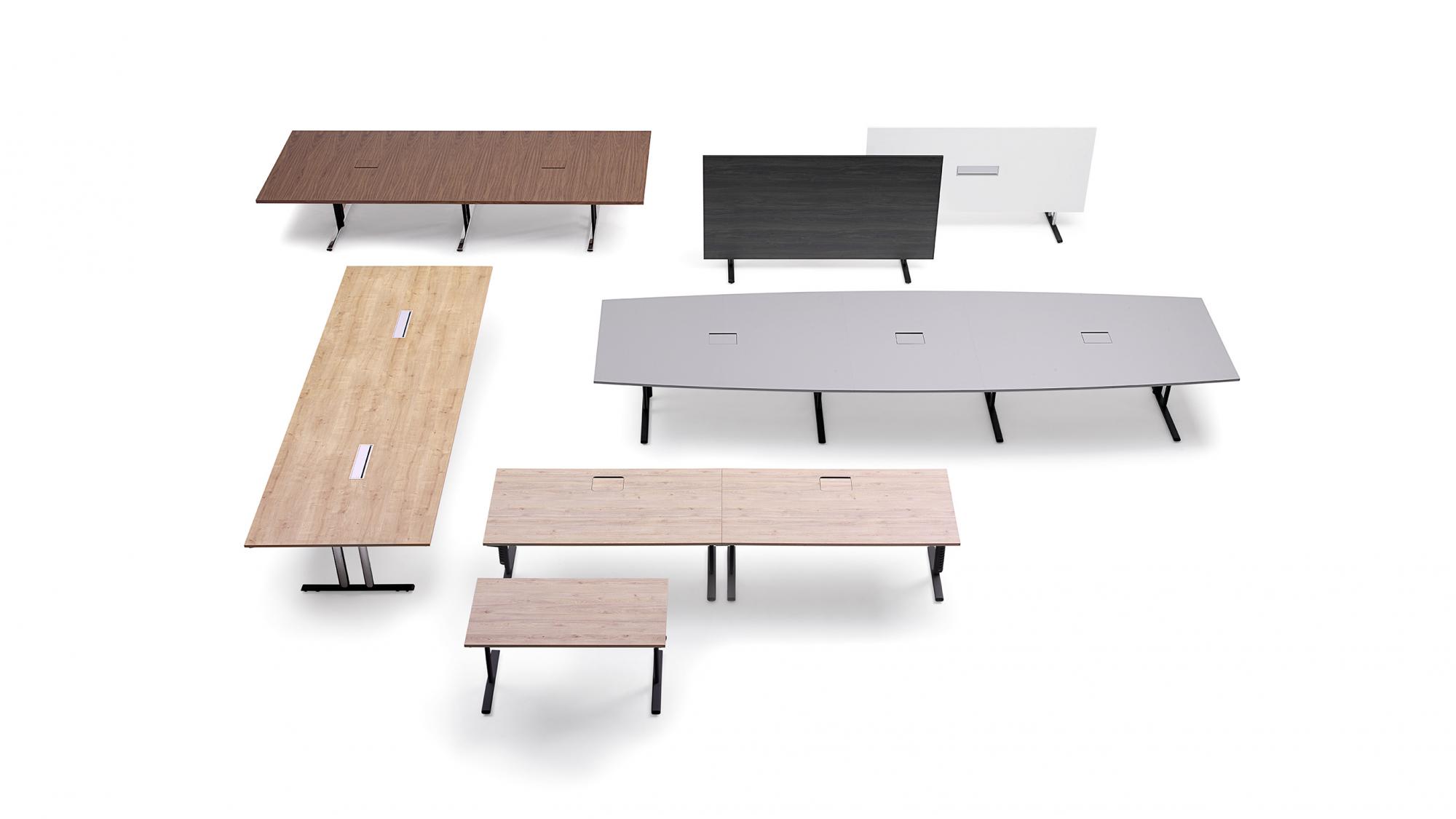

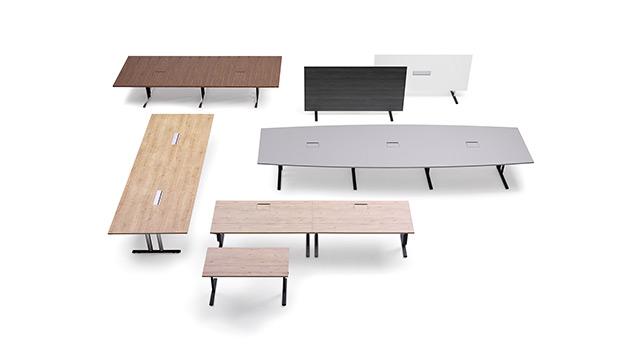

Product range

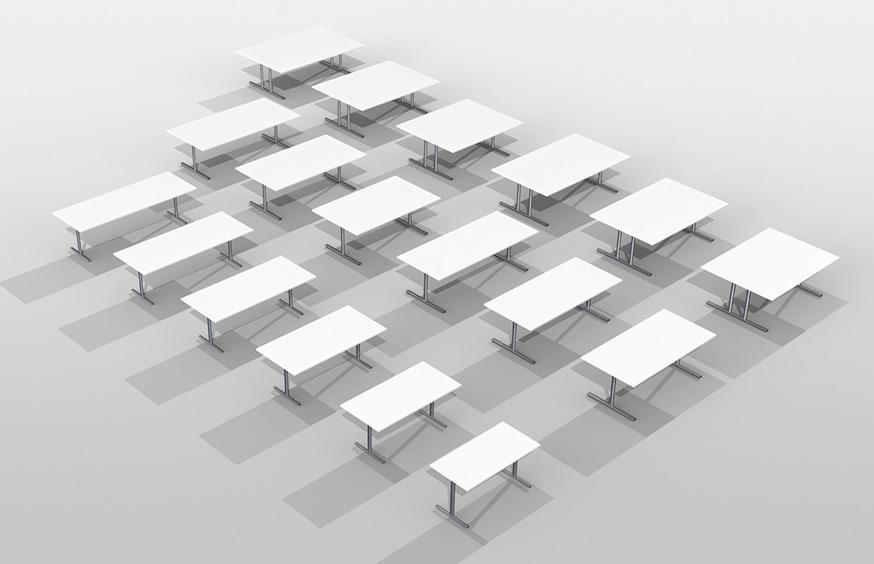

The Convo family consists of 28 variants
CSR-8-16
Static Rectangle 1600 x 800mm
Height 29 [″]
Width 63 [″]
Depth 31 [″]
Width 63 [″]
Depth 31 [″]
CSR-10-20
Static Rectangle 2000 x 1000mm
Height 29 [″]
Width 79 [″]
Depth 39 [″]
Width 79 [″]
Depth 39 [″]
CSR-10-22
Static Rectangle 2200 x 1000mm
Height 29 [″]
Width 87 [″]
Depth 39 [″]
Width 87 [″]
Depth 39 [″]
CSR-12-24
Static Rectangle 2400 x 1200mm
Height 29 [″]
Width 94 [″]
Depth 47 [″]
Width 94 [″]
Depth 47 [″]
CSR-14-28
Static Rectangle 2800 x 1400mm
Height 29 [″]
Width 94 [″]
Depth 47 [″]
Width 94 [″]
Depth 47 [″]
23+
Product
specifications
Standard Product Description - Static Tables
Edge Details:
Melamine Square Edge,
Melamine Chamfered Edge,
Laminate Square Edge,
Laminate Chamfered Edge,
Veneered Square Edge,
Veneered Chamfered Edge,
Veneered Deep Square Edge,
Veneered Solid Chamfered Edge or
Veneered Aerofoil Edge.
Frame: Black Frame, Black or White I Frame.
Feet: 4 x Black Levellers and 4 or 8 x Castors depending on model. Levellers are adjustable to all up to 12mm of levelling.
Legs: Steel Fabricated Ski with Steel Column Frame. The Fabricated Ski and Column are available powder coated in Black or White as standard.
N.B Top frame structure will always be Black.
Ski width / Footspread on tables up to 1000mm in width is 640mm.
Ski width / Footspread on tables from 1200 – 1400mm in width is 900mm.
Ski width / Footspread on tables 1600mm wide is 1200mm.
Top Finishes: Available in Melamine, Laminate and Veneer. Tops are pressed on 25mm MDF board.
Table Top Finishes:Melamine – Franklin Walnut, Straight Grain Oak, Stone Oak, White Coastland, Beech, Graphite, White or Grey.
Laminate Wood Grain – White Fleetwood, Natural Davos, Hamilton Oak, Black Oak, Thermo Oak, Truffle Brown, Sage Green, Agave Green, Fir Green or Baltic Blue.
Laminate Fenix – 0720 Nero Ingo, 0724 Grigio Bromo, 0718 Grigio Londra, 0725 Grigio Efeso, 0032 Bianco Kos, 0751 Rosso Jaipur, 0789 Rosso Namib, 0791 Giallo Evora, 0754 Blu Fes or 0750 Verde Comodoro.
Veneer – Beech, Maple, Oak, Cherry, Walnut.
Grain Direction: On all single piece veneered table tops the grain direction will run the length of the top. On all multi piece tops the grain direction will run widthways to help mask the joints. All standard static tables use crown cut veneer and all flip top tables use straight grain veneer.
Optional Upcharges - Static Tables
Legs: Black fabricated Ski with Chrome Column, Chrome fabricated Ski with Black Column or Chrome fabricated Ski with Chrome Column.
Top frame structure will always be Black.
Edge Details: Black ABS Edge.
Flaps:
Standard Hinged Aluminium Flap,
Large Aluminium Hinged Flap,
Twin Axis Aluminium Flap,
Melamine Flap,
Veneer Flap or
Soft Close Veneer Flap.
Grommet: Sliver Plastic Grommet or Sliver Aluminium Grommet.
Power: Power options available. Rectangle Pluckout Hatch (Laminate only).
Power Box: Black Pars Power Box (empty).
Accessories: Top Mounted Cable Tray, Cable Clips (set of 4), Beam Mounted Cable Clips (set of 6), Convo Column Vertical Cable Cover Black/White, Fabric Cable Riser (Black), Umbilical Cable Riser (Clear) or Clam Shell Cable Riser.
Cable Tray: The cable tray fits to the crossbar beneath the table top. The cable tray runs the length of the crossbar between the leg frames.
N.B multiple cable trays are included in the upcharge on tables with multiple I-frame legs.
Finishes: The steel cable trays are available in Black to match the top frame structure.
N.B As standard when supplying Fenix or wood grain laminate we will always use a white balancing laminate on the underside.
Using a laminate finish may have an impact on the number of table top sections.
Standard Product Description - Flip Top Tables
Edge Details:
Melamine Square Edge,
Laminate Square Edge or
Veneered Square Edge.
Legs: Steel Fabricated Ski with Steel column frame. The Fabricated Ski and Column are available powder coated in Black or White as standard.
N.B Top frame structure will always be Black.
Ski width / Footspread on table up to 900mm in width is 640mm.
Ski width / Footspread on tables from 1000 – 1200mm in width is 900mm.
Feet: 4 x Black Levellers and 4 or 8 x castors depending on model. Levellers are adjustable to allow up to 12mm of levelling.
Leg Position: Standard leg position is 100mm from the end of the table. The Inset leg position is 300mm from the end of the table.
N.B on Round Tables the Leg Position is 200mm from the end of the table.
Top Finishes: Available in Melamine, Laminate and Veneer. Tops are pressed on 25mm MDF board.
Table Top Finishes:
Melamine – Franklin Walnut, Straight Grain Oak, Stone Oak, White Coastland, Beech, Graphite, White or Grey.
Laminate Wood Grain – White Fleetwood, Natural Davos, Hamilton Oak, Black Oak, Thermo Oak, Truffle Brown, Sage Green, Agave Green, Fir Green or Baltic Blue.
Laminate Fenix – 0720 Nero Ingo, 0724 Grigio Bromo, 0718 Grigio Londra, 0725 Grigio Efeso, 0032 Bianco Kos, 0751 Rosso Jaipur, 0789 Rosso Namib, 0791 Giallo Evora, 0754 Blu Fes or 0750 Verde Comodoro.
Veneer – Beech, Maple, Oak, Cherry, Walnut.
Grain Direction: All Veneers are straight grain. Veneer direction runs the length of the table.
Optional Upcharges - Flip Top Tables
Linking: Standard linking for Square Edge Tops. Includes four Black, Nylon, rotating arms to link tables.
Edge Details: Black ABS Edge.
Cable Tray: Runs under frame and simply hangs in position from the beam(s). No fixing required.
Cable Clips: Black plastic cable clips attach to the beams of the table to manage cables running to the floor.
Leg Cable Riser: Black powered coated cable riser attach to the column of the table to manage cables running to the floor.
Flaps:
Standard Hinged Aluminium Flap,
Large Aluminium Hinged Flap,
Melamine Flap,
Long Melamine Flap,
Veneer Flap,
Long Veneer Flap.
Grommet: Sliver Plastic Grommet or Sliver Aluminium Grommet.
Power: Power options available.
Power Box: Black Pars Power Box (empty).
Modesty Panel: Fixes into and runs the length of the under frame. The panel is 300mm in height, Frosted Plastic.
Accessories: Convo Column Vertical Cable Cover Black/White, Fabric Cable Riser (Black) or Umbilical Cable Riser (Clear).
N.B As standard when supplying Fenix or wood grain laminate we will always use a white balancing laminate on the underside.
Using a laminate finish may have an impact on the number of table top sections.
